FKCT15-P 26mm sensing 12-24V dc capacitive water level sensor

FKCT15-P 26mm sensing 12-24V dc capacitive water level sensor

FOB Price:

US 21.17-31.76 / Piece

Min.Order Quantity:

1 Piece/Pieces

Supply Ability:

50000 Piece/Pieces per Month

Port:

Shenzhen;Guangzhou

Place of Origin:

Hunan, China (Mainland)

Payment Terms:

T/T,Western Union

Brand:

F&C

Products Model:

FKCT15-P

Products Details
Company Profile

Quick Details

Brand Name: F&C

Model Number: FKCT15-P

Place of Origin: Hunan, China (Mainland)

Packaging & Delivery

Packaging Details: Standard export package or customized package.
Delivery Detail: Shipped in 5 days after payment

Specifications

F&C FKCT15-P 26mm sensing 12-24V dc capacitive water level sensor

Product Description

Application

Feature:

1.13mm,26mm two detection diatance to select.

2.Mainly used in liquid level detection pipeline.

3.Detection distance and sensitivity can be adjusted.

4.The product with connector can be customized.

5.Not affected by bubbles and liquid color.

With patented red protective sleeve at the outlet location, F&C sensor will be more durable.All the sensor will be shipped from factory directly and 18 months warranty.

FKCT15-P 26mm sensing 12-24V dc capacitive water level sensor

Current	Operating Form	Contact Form	Model	Detection distance	Related product
DC	NPN	NO	FKCT15-N	26mm	Details
DC	NPN	NC	FKCT15-N2	26mm	Details
DC	PNP	NO	FKCT15-P	26mm	Details
DC	PNP	NC	FKCT15-P2	26mm	Details

Specification

FKCT15-P 26mm sensing 12-24V dc capacitive water level sensor

Model	FKCT15-P
Output Method	PNP NO
Detecting distance	26mm
Standard sensing object	Non-metal
Response frequency	200Hz
Hysteresis	≤10% detection distance
Operating voltage	12-24VDC 10%
Current consumption	<10mA
Load current	24V 100mA Max
Leakage current	<0.01mA No-load
Offset Voltage	<1.0VDC at 100mA
Operating Temperature	-25 - +70°C
Waterproof degree	IP66
Meterial	PBT
Wiring method	φ3×2M/3-wires

Product Drawing

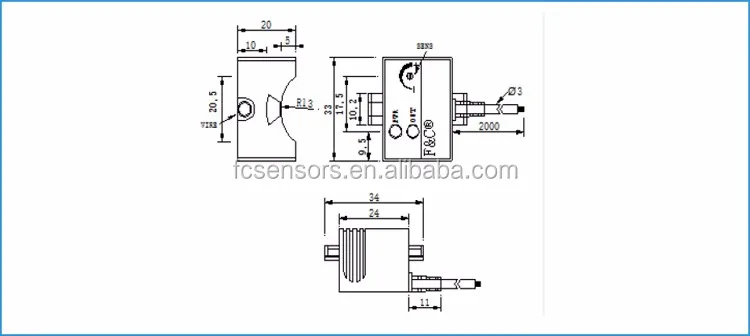

Dimension Drawing

FKCT15-P 26mm sensing 12-24V dc capacitive water level sensor

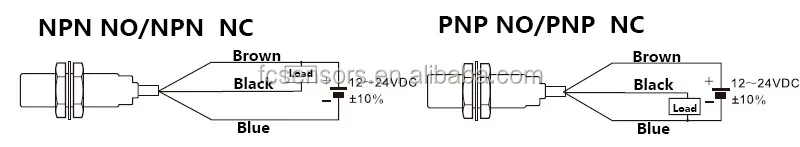

Wiring Drawing
