Brand Name: F&C
Model Number: FKC1810-P
Place of Origin: Hunan, China (Mainland)
M18 10-30Vdc PNP liquid level capacitive proximity sensor
1.capacitive proximity sensor , style: cylinder, diameter: 18mm
-- Shielded type.
-- PNP NO or NC.
-- DC 3-wire(10-30V DC)
-- Connection mode: cables=2M directly.
-- Mounting distance: shielded (10mm)
-- Standard sensing object: non-metal or liquid ;
-- short circuit protection , against polarity reversal
-- IP ratings: IP66
-- Various other shapes: M12/M18/M30, square types
2.specification for M18 10-30Vdc PNP liquid level capacitive proximity sensor
| Model | FKC1810-N |
| Detection Distances | 10mm |
| Standard Sensing Object | 30*30*1mm(Non-Metal) |
| Response Frequency | 600HZ |
| Hysteresis | Less than 10% of sensing distance |
| Detection Method | PNP NO |
| Operating Voltage | 12-24 VDC |
| Current Consumption | Less than 10mA (No Load) |
| Load current | 100mA Max at 24 VDC |
| Residual Voltage | Less than 1.0VDC |
| Leakage Current | Less than 0.01mA( No Load) |
| Protection Degree | IP67 |
| Operating Temperature | -25℃-70℃ (No Icing) |
| Reverse Polarity Protection | Yes |
| Short Circuit Protection | Yes |
| Material | ABS |
All F&C sensor has use world 1st class electronic component, red protective sleeve, good quality control process.
so F&C sensors is more durable and has perfect function.All the sensor will be shipped from factory directly and 18 months warranty.

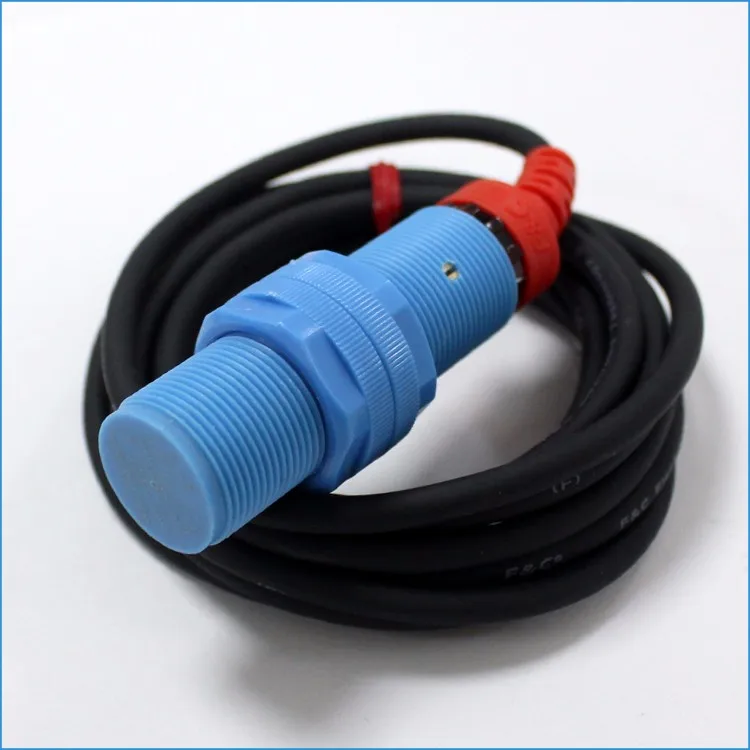

Here is the picture of M18 10-30Vdc PNP liquid level capacitive proximity sensor
M12 10-30Vdc PNP liquid level capacitive proximity sensor
Square 10-30Vdc PNP liquid level capacitive proximity sensor
M34 telfon M18 10-30Vdc PNP liquid level capacitive proximity sensor
1.Prompt reply to our customer, we have to reply all the email within 24hrs
2.Provide free replacement if there is any quality problem with our product.
3. Accept OEM Order, Ship the product with your logo.
F&C is originated from Taiwan, is a leading sensor manufacturing with over 23 years experience in sensor field.
All F&C products are designed & built strictly according to the international norms and conformity with ROHS direction, have achieved CE certification.
And in the process is technically the leading alternative to direct products of the same type from the European, American, Japanese and other world-famous brands.
We also have OEM for world famous brands.
Thousands of products for you to choose the balance, also can make the products according to your requirement. We have established long-term stable cooperation with world famous enterprises, eg: Shanghai LuXshare Group,Shenzhen Hans Laser,Ningbo University,Foxconn & etc., maintained a monthly average of about 100,000 pcs on sales.
