Brand Name: F&C
Model Number: FKCT15-P
Place of Origin: Hunan, China (Mainland)
Liquid 12-26mm pipeline liquid level detection PNP capacitive proximity sensor
Feature:
1.13mm, 26mm two type of pipeline dimension capacitive proximity sensor available.

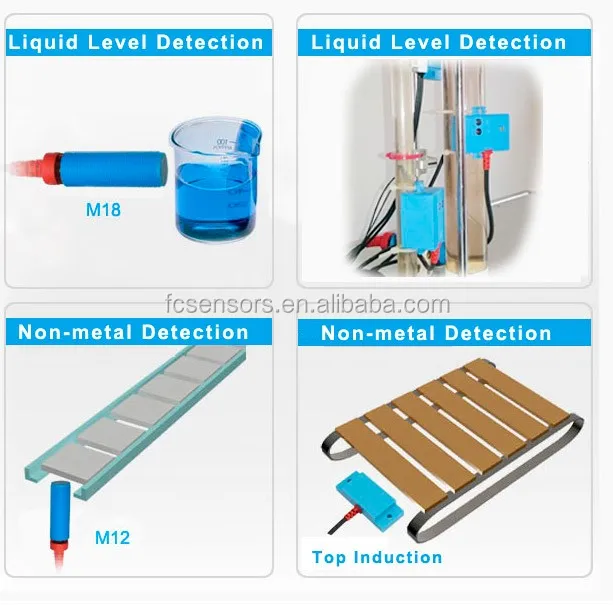

2.Mainly used for liquid level detection for pipeline.
3.capactivie proximity sensor is not effected by bubble and liquid color

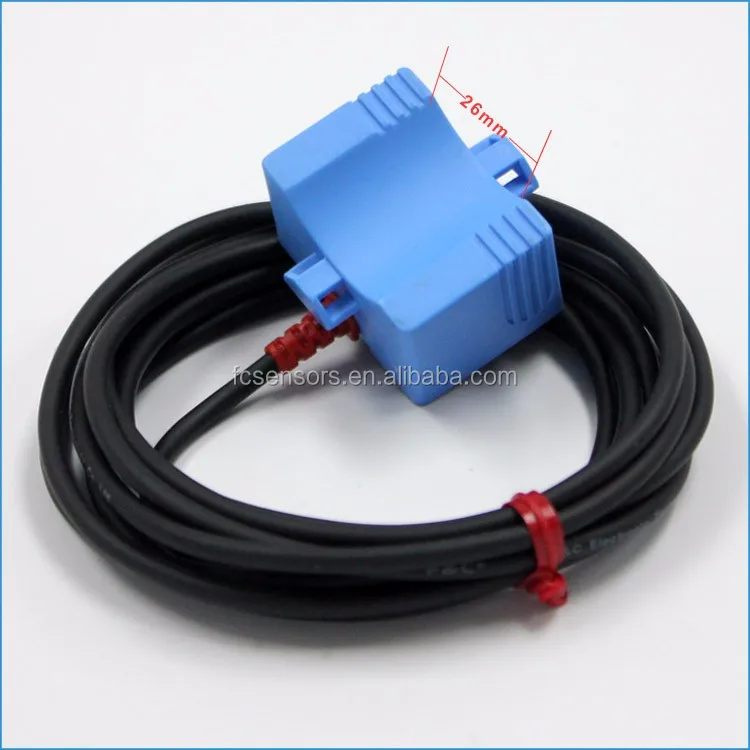

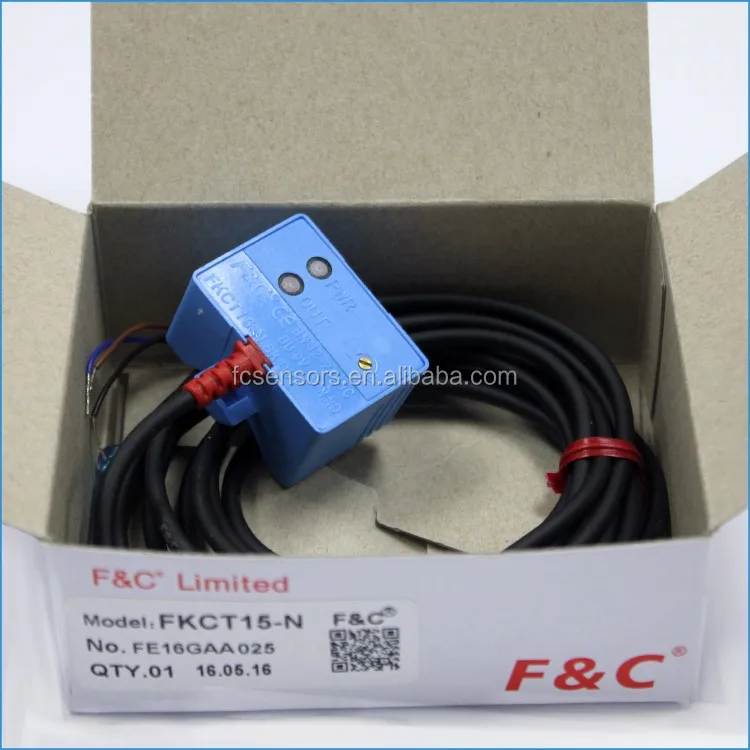

Product display
12-26mm pipeline liquid level detection PNP capacitive proximity sensor
Specification
12-26mm pipeline liquid level detection PNP capacitive proximity sensor
| Model | FKCT15-P |
| Output Method | PNP NO |
| Detection Distances | 26mm |
| Standard Sensing Object | Non-Metal |
| Response Frequency | 200HZ |
| Hysteresis | Less than 10% of sensing distance |
| Operating Voltage | 12-24 VDC |
| Current Consumption | Less than 10mA (No Load) |
| Load current | 100mA Max at 24 VDC |
| Residual Voltage | Less than 1.0VDC |
| Leakage Current | Less than 0.01mA( No Load) |
| Protection Degree | IP67 |
| Operating Temperature | -25℃-70℃ (No Icing) |
| Reverse Polarity Protection | Yes |
| Short Circuit Protection | Yes |
| Material | ABS |
| Wire Method | diameter 3*2M/-3wires |

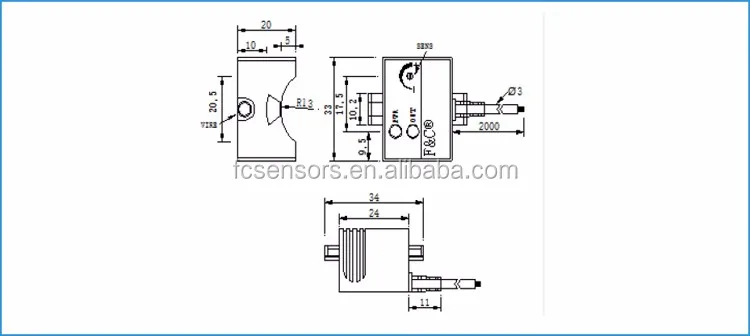

Dimension Drawing
