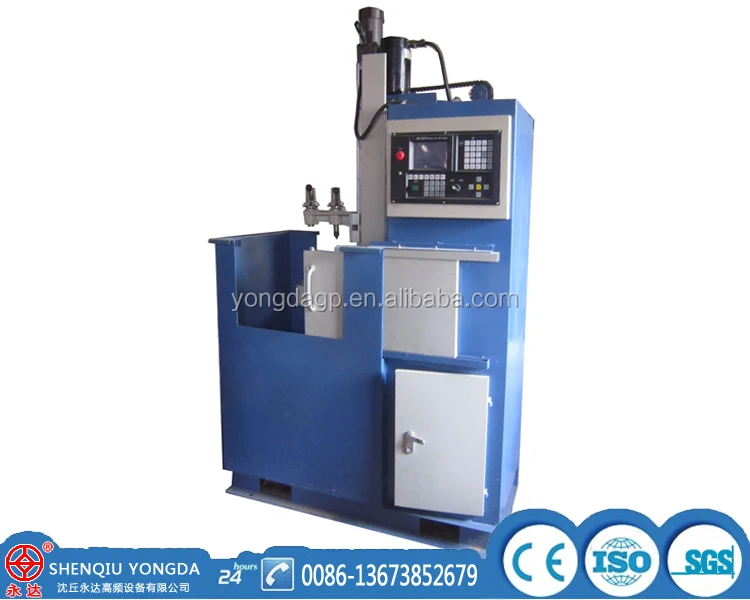

Full solid state induction heating CNC shaft hardening machine tool

Full solid state induction heating CNC shaft hardening machine tool

FOB Price:

US 3000-35000 / Set

Min.Order Quantity:

1 Set/Sets

Supply Ability:

500 Set/Sets per Year

Port:

Shanghai, Qingdao,Tianjin, Guangzhou or as you request

Place of Origin:

Henan, China (Mainland)

Payment Terms:

L/C,D/A,D/P,T/T,Western Union,MoneyGram,paypal,cash

Brand:

Yongda

Products Model:

YD100-60

Products Details
Company Profile

Quick Details

Brand Name: Yongda

Model Number: YD100-60

Place of Origin: Henan, China (Mainland)

Packaging & Delivery

Packaging Details: Two wooden cases(plywood) for packing shaft hardening machine Machine composition: 1. induction hardening power supply 2. CNC shaft hardening machine tool 3. Accessories: inducton coils, foot swith
Delivery Detail: Within 12 days after 30% advance payment

Specifications

Full solid state induction heating CNC shaft hardening machine tool

Product Description

Fully automatic shaft induction hardening machine has two machines:

Part 1: CNC hardening machine tool

Features of CNC hardening machine tool and parameters

1. The machine adopts hydraulic control, advanced circuit design, make the machine more stable
2. Imported hydraulic components, long life, without regular replacement parts
3. The electrical control circuit design is novel, simple, easy to understand, low failure rate
4. The machine tool lift up and down can be hydraulic adjusted stepless, improve quenching quality
5. The machine has complete functions, can meet a variety of workpieces quenching
6. The machine can be added customized functions, according to user's needs

Technial parameters of cnc shaft hardening machine tool

Specifications and model	YD50-35	YD80-50	YD100-60	YD120-80	YD150-100
Max. hardening diameter	350	500	600	800	1000
Max. hardening length	500	500	1000	1200	1500
Max. work piece weight	50	100	150	300	400
Work piece move range	1-50	1-50	1-50	1-50	1-50
Cooling method	Immersion liquid	Immersion liquid	Immersion liquid	Immersion liquid	Immersion liquid
Processing work pieces	Gears, shafts type, disc type etc.

Part 2. WZP-200 Induction hardening machine

Technial parameters of WZP-200 induction hardening machine

1. Work power: 3 phase 380V/50-60HZ

2. Input voltage: 320-420V

3. Input current: 6-200A

4. Oscillation frequency: 10-35 KHZ

5. Size: generator: 820*700*1700mm. transformer 1100*590*590mm

6. Net weight: generator 172kgs. transformer 205kgs

7. Cooling water pressure: 0.3MPA

8. Cooling water temperature: below 50 degree cels.

Control panel of IGBT High frequency induction hardening machine

Full protection: has over voltage,over current,temperature is over high,lack of water, lack of phase,etc, alarm lamps indicators. can automaticly control and protection the machine itself.

Shaft hardening

More applicatons of induction hardening machine:

1 The various hardware tools, hand tools, heat treatment. Such as pliers, wrenches, screwdrivers, hammers, axes and so on.
2 kinds of auto parts, motorcycle accessories high-frequency quenching. Such as: crankshaft, connecting rod, piston pin, crank pin, wheel, camshaft, valves, all kinds of rocker arm, rocker shaft; transmission of various gears, spline shafts, drive axle, a variety of small axes, a variety of fork and other high-frequency quenching.
3 power tools on the gears, shafts and other high-frequency quenching.
4 a variety of hydraulic components, pneumatic components of high frequency hardening heat treatment. Such as the piston plunger, rotor pump rotor on a variety of valves for the shaft, the gear pump gear, etc. quenching.
5 Heat treatment of metal parts. Such as the various gears, sprockets, all kinds of shafts, spline shafts, pins and other high-frequency quenching.

6 Machine tool industry guide, tools swallowtail quenching treatment.

Our product quality certifications: ISO9001:2000

Packaging & Shipping

Packing cnc shaft induction hardening machine:

Two wooden cases (plywood) Inside,will be filled with plastic foam,for waterproof and shockproof.

Accessories: induction coils,foot switch and installing and operating instructions

Shipping: by sea LCL(less than container load) or by air.

Our Services

1. Reply your inquiry within 24 working hours
2. Experienced engineer instruct and sales communicate with you in fluent English.
3. According to work pieces specifications, heating requirements, propose best solutions,also reference your ideas.
4. Machine details and working video link for your reference
5. Competitive price ,compare with the same industry
6. Production: strict quality standard, to produce machine and induction coils.
7. Debugging machine and only good machine will be sent.
8. Tracking goods shipping and provide bill of lading,invoice,packing list and other documents what you need
9. Provide install and technology instruction by sending drawings, email, or telephone,video.
10.If you need, will arrange one engineer to your place,instruct install machine and training operators.
11.Excess warranty period(12 months warranty), you can buy the spare parts from us with special discount price.
12.Provide long-terms technical support

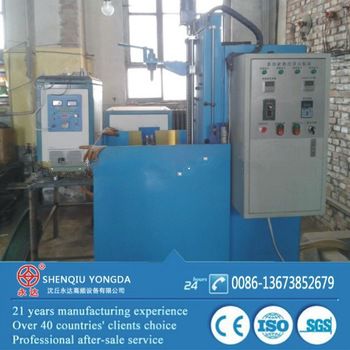

Our company's scene

Company's honor

Contact Me

Thanks for your reading ! Welcome to contact us !

Shenqiu Yongda High Frequency Equipment Co., Ltd. was founded in 1996,which belongs to Henan high-tech enterprise ,was located in No.65, Liufu Village Liufu town, Shenqiu County, Henan ,China .
We have international trade department in Zhengzhou city. East to international airport (CGO), besides, high way, high speed rail, transport is very convenient.

We professionally dedicated to R & D, produce and sale high frequency, super audio frequency, medium frequency induction heating equipment: WGH ,WZP and KGPS series, CNC quenching machine tool and automatic feeder machine etc. We adhering to the spirit of innovation, mean while strengthening cooperation with domestic well-known universities and research institutions.

Our machine is mainly used for heating metal, induction forging, hardening, brazing, annealing, melting , shrink fit, etc. other fields.

Yongda High frequency Equipment Co.,Ltd is the leader of induction heating field and biggest full solid state induction heating equipment manufacturer in China. Our products has got CE and ISO certification and hot sale at home and abroad. Up to now, we already exported to Europe, America, and Southeast Asia etc. other regions.

Welcome everyone to visit us and negotiation business !
