Double axis induction hardening machine tool

FOB Price:

US 1000-9800 / Set

Min.Order Quantity:

1 Set/Sets

Supply Ability:

500 Set/Sets per Year

Port:

Shanghai, Qingdao,Tianjin, Guangzhou or as you request

Place of Origin:

Henan, China (Mainland)

Payment Terms:

L/C,D/A,D/P,T/T,Western Union,MoneyGram,paypal,cash

Brand:

Yongda

Products Model:

YD150-100

Products Details
Company Profile

Quick Details

Brand Name: Yongda

Model Number: YD150-100

Place of Origin: Henan, China (Mainland)

Packaging & Delivery

Packaging Details: 1.Wooden cases(plywood) for packing induction hardening machine tool 3.Inside filling with plastic foam for water proof and shockproof 3. Transport by sea or by air
Delivery Detail: Within 10 days after 30% advance payment, 7days if have stocks

Specifications

induction hardening machine tool
1. lead screw design
2. hardening length:1500mm
3. hardening diameter 1000mm
4. digital

Double axis induction hardening machine tool

Usage : induction hardening machine tool is mainly used for shafts, gears hardening, high automatic degree,high precision.

Features of induction hardening machine tool

   1, the machine uses PC-industrial digital control systems, high performance, debug and easy to use, to the greatest degree of quenching the workpiece to meet the complex needs.
    2, the machine can achieve quenching mode: continuous scan quenching, and quenching, sub-continuous scanning quenching (by the level of sub-setting, no limit switch, the same below), while sub-quenching.
    3, this machine is suitable for the typical artifacts (in the appropriate size range) axis: a variety of shaft, step shaft, gear shaft, cam shaft, axle, the cylindrical disk-type parts, end so on.
    4, the machine control system for reserve electrical heating and cooling water quenching control interface. According to the process of quenching process and the need to control the cooling process.
    5, low running costs. Just run the workpiece drive motor 250W, machine power consumption less than one-fifth of machinery and equipment.
    6, the fuselage structure by profile, low cost, light weight, economical and practical.
    7, easy maintenance, low failure rate, no leakage.
    8 high degree of automation and production efficiency.
    9, rail uses linear bearings, high precision, small friction, long life.
    10, with heavy equipment through the sprocket, chain balance the weight.

Double axis induction hardening machine tool

Single axis or double axis induction hardening tool , my company can produce both of them. Double axis can hardening two shafts at one time.

Technical parameters of induction hardening machine tool

Specifications and model	YD50-35	YD80-50	YD100-60	YD120-80	YD150-100
Max. hardening diameter	350	500	600	800	1000
Max. hardening length	500	500	1000	1200	1500
Max. work piece weight	50	100	150	300	400
Work piece move range	1-50	1-50	1-50	1-50	1-50
Cooling method	Immersion liquid	Immersion liquid	Immersion liquid	Immersion liquid	Immersion liquid
Processing work pieces	Gears, shafts type, disc type etc.

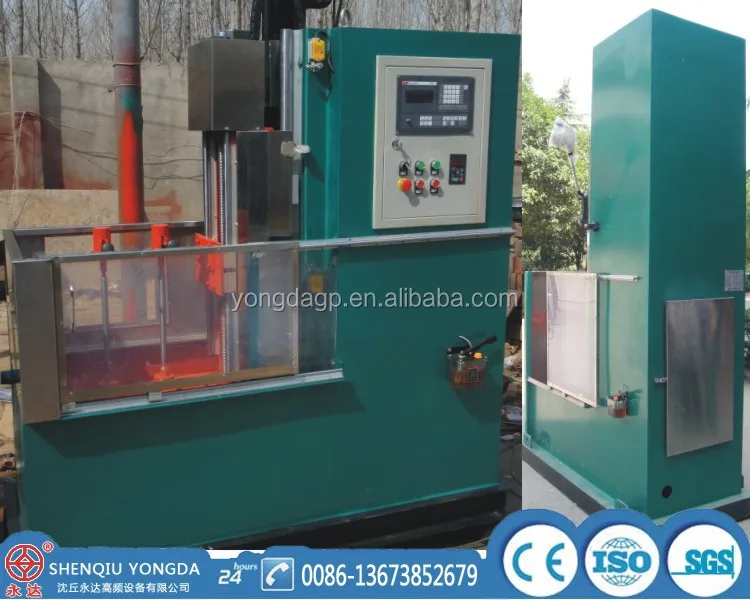

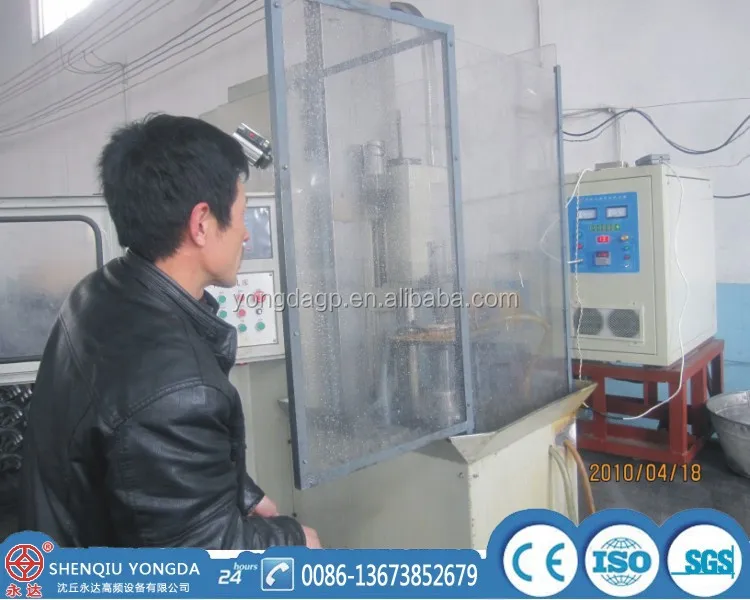

CNC induction hardening machine tool working onsite

Induction hardening power supply

Axis/shaft induction hardening

Camshaft induction hardening

About Us

We are in induction heating industry exhibition

Oversea customers

Our factory

Our Services

1. Reply your inquiry within 24 working hours
2. Experienced engineer instruct and sales communicate with you in fluent English.
3. According to work pieces specifications, heating requirements, propose best solutions,also reference your ideas.
4. Machine details and working video link for your reference
5. Competitive price ,compare with the same industry
6. Production: strict quality standard, to produce machine and induction coils.
7. Debugging machine and only good machine will be sent.
8. Tracking goods shipping and provide bill of lading,invoice,packing list and other documents what you need
9. Provide install and technology instruction by sending drawings, email, or telephone,video.
10.If you need, will arrange one engineer to your place,instruct install machine and training operators.
11.Excess warranty period(12 months warranty), you can buy the spare parts from us with special discount price.
12.Provide long-terms technical support

Packaging & Shipping

Packing for induction hardening power supply

1.Wooden cases (plywood) or carton,as you request.

Inside,will be filled with plastic foam,for waterproof and shockproof.

2.Accessories: high frequency cable 2 pcs, (connect generator and transformer)induction coils,foot switch and installing and operating instructions

Shipping: by sea LCL(less than container load) or by air.

Contact Information

Shenqiu Yongda High Frequency Equipment Co., Ltd. was founded in 1996,which belongs to Henan high-tech enterprise ,was located in No.65, Liufu Village Liufu town, Shenqiu County, Henan ,China .
We have international trade department in Zhengzhou city. East to international airport (CGO), besides, high way, high speed rail, transport is very convenient.

We professionally dedicated to R & D, produce and sale high frequency, super audio frequency, medium frequency induction heating equipment: WGH ,WZP and KGPS series, CNC quenching machine tool and automatic feeder machine etc. We adhering to the spirit of innovation, mean while strengthening cooperation with domestic well-known universities and research institutions.

Our machine is mainly used for heating metal, induction forging, hardening, brazing, annealing, melting , shrink fit, etc. other fields.

Yongda High frequency Equipment Co.,Ltd is the leader of induction heating field and biggest full solid state induction heating equipment manufacturer in China. Our products has got CE and ISO certification and hot sale at home and abroad. Up to now, we already exported to Europe, America, and Southeast Asia etc. other regions.
