1500 kg oil gas steam boiler

FOB Price:

US 0.1-1000000 / Set

Min.Order Quantity:

1 Set/Sets

Supply Ability:

500 Ton/Tons per Quarter

Port:

Shanghai, Qingdao, Tianjin, or other ports

Place of Origin:

Henan, China (Mainland)

Payment Terms:

L/C,T/T,Western Union

Brand:

Yuanda Boiler

Products Model:

WNS

Products Details
Company Profile

Quick Details

Brand Name: Yuanda Boiler

Model Number: WNS

Place of Origin: Henan, China (Mainland)

Packaging & Delivery

Packaging Details: Boiler proper & condensor & chimney & steam header: nude packing. Valves & burners & pumps & water softener & control cabinet: wooden boxes.
Delivery Detail: 1-6t/h:0-30 days, 8-10t/h:0-45 days

Specifications

Product Description

WNS automatic low pressure horizontal single drum fire tube three passes wet-back diesel/ light oil/ heavy oil/ waste oil fired steam boilers

3 ton diesel industrial steam boiler price

A boiler is a closed vessel in which water or other fluid is heated. The heated or vaporized fluid exits the boiler for use in various processes or heating applications. Steam boiler / generator is a device used to create steam by applying heat energy to water, which used wherever a source of steam is required. Oil steam boiler/ generator is burn oil fuels to heat water in boiler drum to generate steam.

WNS automatic low pressure horizontal single drum fire tube three passes wet-back diesel/ light oil/ heavy oil/ waste oil fired steam boilers
Rated steam capacity	1ton/hr, 2ton/hr, 3ton/hr, 4ton/hr, 5ton/hr, 6ton/hr, 8ton/hr, 10ton/hr, 15ton/hr 1TPH, 2TPH, 3TPH, 4TPH, 5TPH, 6TPH, 8TPH, 10TPH, 15TPH 80BHP, 100BHP, 150BHP, 200BHP, 300BHP, 370BHP, 450BHP, 600BHP, 750BHP
Rated working pressure	7bar, 10bar, 13bar, 16bar, 25bar 0.7Mpa, 1.0Mpa, 1.25Mpa, 1.6Mpa, 2.5Mpa 100Psi, 150Psi, 180Psi, 230Psi, 360Psi
Rated steam temperature	171 ℃, 184℃, 194℃, 204℃, 226℃
Design fuels	diesel, light oil, heavy oil, heavy fuel oil, biodiesel, crude oil, kerosene, furnace oil, hfo oil, bunker fuel, bunker oil fuel, stove oil, residue oil, residual oil, continental oil, continental crude oil, residual furnace heavy fuel oil, mazut, etc
Thermal efficiency	> 90%
Warranty	One year
Working process	1.Italy Baltur burner burn oil fuels and blow the high temperature flue gas into boiler proper. The fan equipped in the burner blows the flue gas flow through corrugated furnace, smoke tubes, front and rear smoke boxes of boiler proper, chimney. 2.When the high temperature gas flows thourgh boiler proper, water in the boiler is heated and eventually turns out into steam. 3.Water first flow into water treatment equipment to remove Mg+ and Ca+, and then into water tank, finally into boiler drum. 4.Electrical cabinet show the datas of burner, pressure meters, water level meters, and other meters, and control the whole working system based on such datas.
Boiler Working System Protection Functions	Boiler safety equipment can effectively and timely stop the running machines when overpressure, overtemperature, flameout, sudden power failure, combustion system pressure higher or lower than set value, control elements or burner fails, to ensure the safety of equipment and personal. 1.Burner flameout fault, sound-light alarm 2.Higher or lower wind pressure, sound-light alarm 3.Overpressure, sound-light alarm 4.Gas leakage protection 5.Gas pressure fault, sound-light alarm 6.Burner motor overload, fault protection
Applications	Provide steam and energy to machinery and plants in following industries, Food industry, Textile and garments industry, Shoes industry, Chemicals industry, Plastics industry, Rubber industry, Tyre industry, Metal and metallurgy industry, Energy & mineral industry, Medicines and pharmaceuticals industry, Beer, wine and beverage industry, Leather industry, Milk and dairy industry, Furnace industry, Laundry wash industry, Sterilization machines, etc.
Product name	3 ton diesel industrial steam boiler price

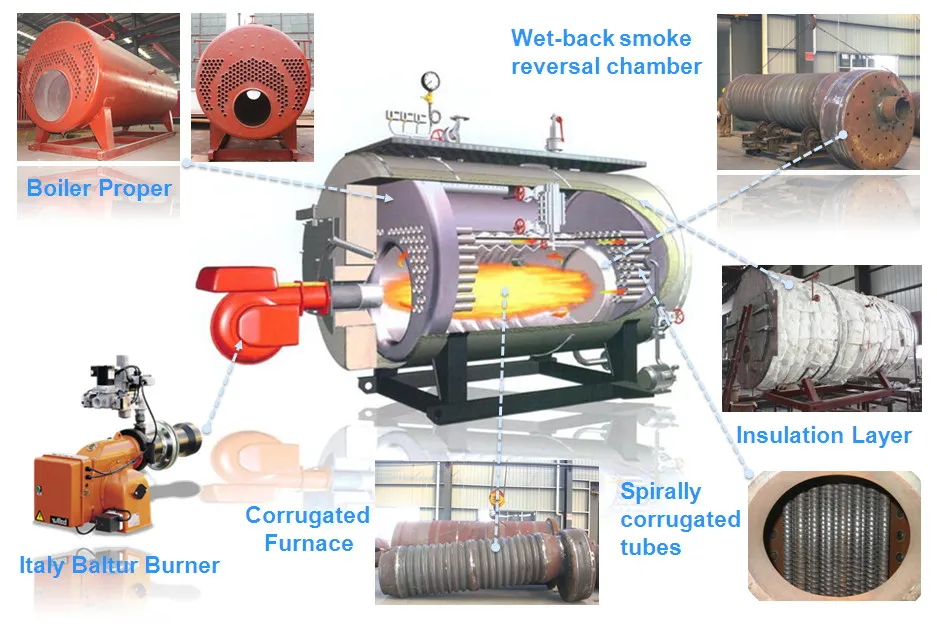

Detail Images

Boiler proper

Fully welded pressure steel structure

Material, 1. Special steel plate for pressure vessels & boilers

2. Seamless steel tubes

Reverse Chamber

Reverse chamber is in the end of corrugated furnace, which is set in boiler water completely, forming

wet-back structure.

Corrugated Furnace

Flame come out of burner and go into corrugated furnace. Central heating parts of boiler.

Front Smoke Box Door

After coming out of corrugated furnace and reverse chamber, flame and high temperature gas go through short spirally smoke tubes to front smoke box, forming second heating pass, and then through spirally long smoke tubes to back smoke box, forming third

heating pass.

Spirally Smoke Tubes

Flame and high temperature gas flow through them forming three heating passes, reinforcing heating, reducing welding stress.

Rock Wool Insulation

Packed out of boiler proper, insulation layer reduce heat loss
