Home > Products > Water System > Water Pump

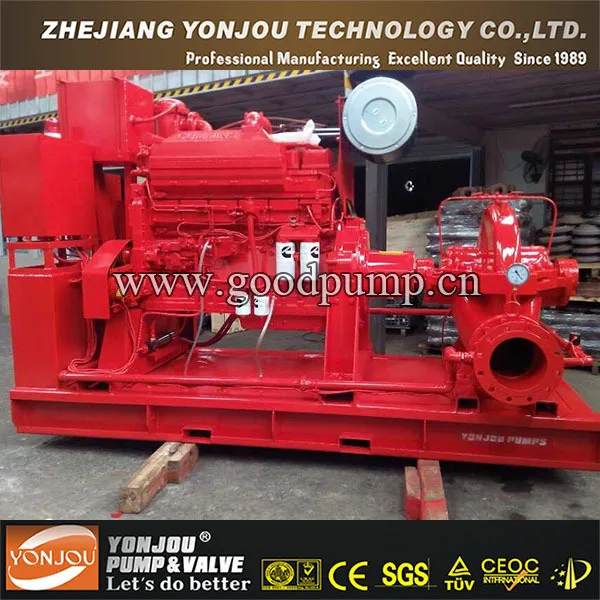

Centrifugal Fire fighting Pumps with Electric Diesel Engine Jockey pump

Centrifugal Fire fighting Pumps with Electric Diesel Engine Jockey pump

FOB Price:

US 3000-35000 / Set

Min.Order Quantity:

1 Set/Sets

Supply Ability:

500 Set/Sets per Month

Port:

Ningbo, Shanghai

Place of Origin:

Zhejiang, China (Mainland)

Payment Terms:

L/C,T/T,Western Union

Brand:

Centrifugal Fire-fighting Pumps with Electric + Diesel Engine

Products Model:

Products Details
Company Profile

Quick Details

Brand Name: Centrifugal Fire-fighting Pumps with Electric + Diesel Engine

Model Number: S

Place of Origin: Zhejiang, China (Mainland)
Theory: Centrifugal Pump
Structure: Single-stage Pump, Water pump for Deutz
Usage: Water
Power: Diesel
Standard or Nonstandard: Standard
Fuel: Diesel
Pressure: Low Pressure
Application: fire fighting
Material: Cast Iron/Stinless steel
Certificate: CE/ISO9001:2000/SGAny
Color: Horizontal
Type: 1 Year
Warranty: Closed Impeller
Impeller: Centrifugal Fire-fighting Pumps with Electric + Diesel Engine

Packaging & Delivery

Packaging Details: packing :standard export plywood case for each Centrifugal Fire-fighting Pumps with Electric + Diesel Engine + Jockey pump
Delivery Detail: 25days

Specifications

Centrifugal Fire-fighting Pumps with

Electric + Diesel Engine + Jockey pump

Specifications

NFPA20 fire fighting pump
1.Capacity:126~8520m3/h
2.Hosepower:50~1066HP
3.Head:8~140m
4.Diameter:6"~32'

Pump Specification:

Pump Type	Multistage Centrifugal Pump
Casing Material	HT200
Impeller	SS304,SS316,Copper,HT200
Pump Sealing	Packing seal
Capacity Range	126m3/h~8520m3/h
Head Range	8m~140m
Inlet/Outlet diameter	6"(150mm)~32"(800mm)
Rotary Speed	1450rmp/2950rpm/585rpm/730rpm/970rpm
NPSH(r)	2.5m~7.5m
N.weight	165kgs~2550kgs
Pump Parts	Casing,Pump cover,Impeller,Shaft, Double suction sealing ring Shaft sleeve,Bearing etc
Certificate	ISO9001:2008,CE,TUV

Diesel engine specification:

Drive Variation	Cummins,Deutz,Ricardo,Perkins or Chinese Diesel
Power Range	50HP~1066HP
Diesel driving	Water cooled,air cooled
Cylinder	2 or 4
Cylinder diameter	95,96,100,102,105,110,113
Stroke	115,125,130,135
Displacement	3.26~9.49L
Engine Oil Capacity	13L,17L
Fuel consumption	218,224,231,251.6,258.4
N.weight	650kgs~2200kgs

Diesel Engine Brand

International Brand: CUMMINS, DAEWOO, VOLVO, MAN, PERKINS, MITSUBISHI,JOHN DEERE, DEUTZ, MTU, CATERPILLER, YAMAHA, IMC, IVECO
Chinese Brand: WEICHAI, YUCHAI, SDEC, FAW, QUANCHAI, CHANGCHAI, XINCHAI, DFAC, DCD, BEINEI, HBE.

Baseplate Type
Cart Type, Mobile Trailer Type, Auto Truck Type, Totally Enclosed Mute Type.

Control Mode
Manual Start, Button start, 3G Remote start, Intelligent and Multi-function operation.

Application Area:
