Home > Products > Refrigeration Fittings > Oil Pump

Screw Pump Three Screw Pump Twin Screw Pump

Screw Pump Three Screw Pump Twin Screw Pump

FOB Price:

US 100-1000 / Set

Min.Order Quantity:

1 Set/Sets

Supply Ability:

6600 Set/Sets per Month

Port:

Ningbo/Shanghai

Place of Origin:

Zhejiang, China (Mainland)

Payment Terms:

L/C,D/P,T/T,Western Union

Brand:

YONJOU

Products Model:

LQ3G

Products Details
Company Profile

Quick Details

Brand Name: YONJOU

Model Number: LQ3G

Place of Origin: Zhejiang, China (Mainland)
Theory: Screw Pump, Rotary Pump
Structure: Screw Pump, Screw Pump
Usage: Oil, oil
Power: Electric, Electric
Standard or Nonstandard: Standard
Pressure: High Pressure
Application: Screw Pump Three Screw Pump Twin Screw Pump
Material: Cast Iron, Stainless steel
Certificate: ISO9001:2008 or ce
Voltage: 220V/380V/400V/415V, 50H
Type: Horizontal
Warranty: 1 Year Warranty(except Wearing Parts)

Packaging & Delivery

Packaging Details: standard plywood case for Screw Pump Three Screw Pump Twin Screw Pump
Delivery Detail: 5 days after your payment

Specifications

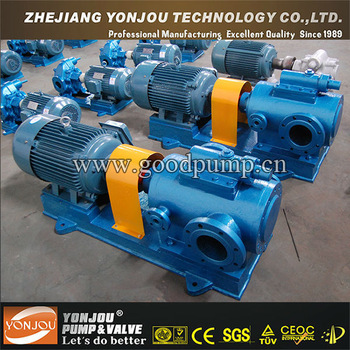

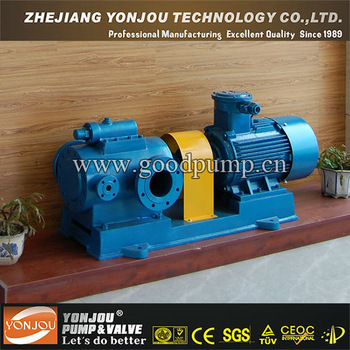

Screw Pump Three Screw Pump Twin Screw Pump

Overview and purpose:

Three screw pump is suitable for a variety of non-corrosive oil and similar oil and lubrication liquid. Conveying the liquid viscosity range is generally 3.0-760mm2 / s (1.2-100oE), the high viscosity of the medium may be followed by a warming Visbreaking conveyed. Its temperature does not exceed 350 °C.

Three screw for conveying fuel oil, lubricating oil, hydraulic oil, crude oil, asphalt and other similar oil lubricants and lubricating liquid.

Three screw pump lubrication pump in the industrial field, in the hydraulic system for hydraulic pump for conveying and booster pump in the fuel system, transmission and fuel pumps in the oil system.

Product Features:

(1) The medium is a straight line, without agitation and without pulsation;

(2) Low vibration, low noise;

(3) High pressure, high efficiency;

(4) The structure is simple, easy accessibility;

(5) Minor wear, long life.

Technical parameters:

Performance:

Flow range: 2.4m ³ / h to 240m ³ / h

Head range: 60m ~ 250m

Motor power: 1.1kw ~ 90kw

Note: If you have special requirements, please contact our technical staff! (0577-67981666)

Model significance:

Example: LQ3G 60 * 2-46

LQ3G - three screw pump

60 - Screw diameter

2 - screw pitch

46 - screw the helix angle of 46 °

Packaging & Shipping

Company Information

Zhejiang Yonjou Technology Co., Ltd is one of the leading manufacturers and exporters in the field of industry pumps with manufacturing facilities in mainland China. We are specialized in oil pump, diaphragm pump, diesel engine pump, centrifugal pump, screw pump, chemical pump etc.
