High Quality Industrial Evaporative Condensing Unit For Cold Room

Evaporative Condenser:

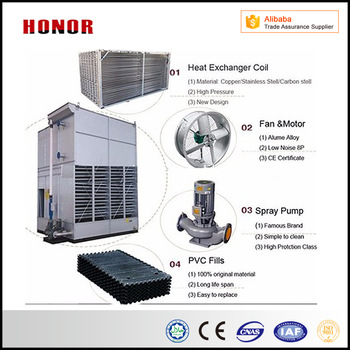

Evaporative condenser uses water and air as cooling medium. The cooling medium exchanges the heat with high-heat gaseous refrigerant medium and hence the refrigerant medium becomes liquid. Inside, there are water dispatching system, condensing coils, wet padding heat exchange layer, and dehydrator and so on. Outside, there are water circulating pump, an electric water-curing device and a propeller fan on the top of condensing coil. The propeller fan strengthens the flow of the air and causes negative pressure inside. When the condenser works, the cooling water is sprayed from water dispatching system to the surface of condensing coil equably to form a thin layer of water film. The high-heat steam of refrigerant medium enters from the top of condensing coil and then the cooled liquid refrigerant medium is discharged from the bottom of the condensing coil. During this process, high-heat refrigerant medium exchanges the heat with the water and air outside the coil and increase the efficiency of medium exchange with the help of wind. After absorbing the heat of refrigerant medium some water turns into steam and is discharged by propeller fan. Meanwhile, the moisture in the air is collected by dehydrator to collecting basin, and then the non-gasified cooling water flows into heat exchange layer and its heat is taken away by the airflow. The cooled water converges in the basin to be used circularly by the pump later. In addition, there is a ball cock in the basin. When the water is consumed to a certain point, the ball cock will automatically open to replenish the cooling water.

Shandong Honor Refrigeration Technology Co., Ltd., located in Binzhou, Shandong,  was first established in 2005 and built new headquarter base in 2011 with land area of 150000 square meters. Honor is specialized in the development and manufacture of refrigeration equipments. So far, we have two subsidiaries - Shandong Huayu Machinery Equipment Co., Ltd. and Onestop Engineering Co., Ltd.

Honor aims to be China’s refrigeration equipment expert and leader. We provide one-stop solution for various cold store projects for our customers. Our products mainly include refrigeration units, cold room’s materials, meat/fishery/vegetable and fruit processing equipments and stainless steel accessories. We are the unique enterprise that can do comprehensive project for food industry, covering infrastructure, cold storage, and processing line manufacture and installation in China.

Honor have been accredited by ISO9001 Quality System in 2014 and granted the honor of ‘Shandong Famous Trademark’, which are a great reward for our belief of being a socially responsible enterprise. Honor will keep moving forward to build a better future of China refrigeration equipment industry.

please visit our website for more information: www.aonaerzl.com
