warm floor heated floor mat

warm floor heated floor mat

FOB Price:
US 10-125 / Piece
Min.Order Quantity:
1 Piece/Pieces
Supply Ability:
10000 Square per Meter/Square
Port:
Shanghai
Place of Origin:
Jiangsu, China (Mainland)
Payment Terms:
L/C,T/T,Western Union,MoneyGram,paypal
Brand:
SENPHUS
Products Model:
SHDN-200-3.0M2
Share:
  • Products Details
  • Company Profile

Quick Details

  • Brand Name: SENPHUS

    Model Number: SHDN-200-3.0M2

    Place of Origin: Jiangsu, China (Mainland)

  • Type: Floor Heating Systems

    heating mat power: 90w/m2, 100w/m2, 130w/m2, 150w/m2, 160w/m2, 170w/m2, 200w/m2

    mat color: white, red, yellow, etc. If you need other color, you could tell us.

  • heating mat models: 0.5m2 1.0m2, 5m2, 6m2, 7m2, 8m2, 9m2, 10m2, 11m2, 12m2, 15m2.

    cold cable length: 2m, 3m ,4m, etc.

    heating cable color: blue, orange, red, purple, rose, etc

Packaging & Delivery

  • Packaging Details: carton, pallet, wooden box
  • Delivery Detail: about 15days

Specifications

  SENPHUS electric heated floor mats heating systems  :





Electric heated floor mats has been used since Roman times as a central heating system. Any type of gas fuelled boiler can be used to provide the heat for a  electric heated floor mats heating system.

Pipes are usually run underneath the floor surface and the heat from the water passing through the pipes transfers directly into the floor.







A warm floor creates warm air convection and this in turn heats the surrounding living space.  Electric heated floor mats is an exceptionally straightforward but highly effective way of providing a comfortably warm indoor climate with an even distribution of heat.







Five Reasons to Choose SENPHUS Electric heated floor mats heating systems







There are many benefits associated with Electric heated floor mats for the following :







1. Comfort
Heat radiating from the floor upwards is far more evenly distributed than heat that emanates from wall mounted radiators. Heat from wall mounted radiators is confined to a small area and rises upwards. This means that the warmer air stays around head height which does not tend to create the most comfortable feeling. Additionally, compared to traditional radiator systems there are no irritating noises arising from expanding and contracting pipes.







2. Cost effectiveness and energy efficiency
Electric heated floor mats heating systems can give you a 15-40% energy saving over traditional heating methods.







3. Health
Electric heated floor mats heating systems helps to keep moisture content levels low which mean that house dust mites can be reduced. This will benefit anyone with asthma or breathing difficulties or any other allergies.







4. Ease of control
With a Electric heated floor mats heating system, the temperature of each room can be controlled individually. Being able to adjust temperature settings in each room of the house is a major benefit for any family.







5. Space and Aesthetics
Electric heated floor mats heating system saves space and offers heightened visual appeal in a home by eliminating the need for wall mounted radiators. Additionally, wet floors dry more quickly and décor is maintained due to a lack of damp walls.






SENPHUS electric heated floor mats heating systems :





voltage
(V)
specification total power
(W)
total resistance
@20oC+10/-5%
total length of heating wire (m) cold wire length (m) Diameter of heating wire
(mm)
230V SHDN-200-1.0M2    200 264.5 11.1 3C 0.5mm2 L=2M black about 3.5mm
230V SHDN-200-1.5M2    300 176.3 16.65 3C 0.5mm2 L=2M black about 3.5mm
230V SHDN-200-2.0M2    400 132.2 22.2 3C 0.5mm2 L=2M black about 3.5mm
230V SHDN-200-2.5M2    500 105.8 27.75 3C 0.5mm2 L=2M black about 3.5mm
230V SHDN-200-3.0M2    600 88.2 33.3 3C 0.5mm2 L=2M black about 3.5mm
230V SHDN-200-3.5M2    700 75.6 38.85 3C 0.75mm2 L=2M black about 3.5mm
230V SHDN-200-4.0M2    800 66.1 44.4 3C 0.75mm2 L=2M black about 3.5mm
230V SHDN-200-5.0M2    1000 52.9 55.5 3C 0.75mm2 L=2M black about 3.5mm
230V SHDN-200-6.0M2    1200 44.1 66.6 3C 0.75mm2 L=2M black about 3.5mm
230V SHDN-200-7.0M2    1400 37.8 77.7 3C 1.0mm2 L=2M black about 3.5mm
230V SHDN-200-8.0M2    1600 33.1 88.8 3C 1.0mm2 L=2M black about 3.5mm
230V SHDN-200-9.0M2    1800 29.4 99.9 3C 1.0mm2 L=2M black about 3.5mm
230V SHDN-200-10.0M2      2000 26.5 111 3C 1.0mm2 L=2M black about 3.5mm
230V SHDN-200-12.0M2    2400 22.0 133.2 3C 1.5mm2 L=2M black about 3.5mm







 Features:



1 Twin core heating cable with single cold lead

2 Sizes available from 1 to 12sqm coverage
3 FEP insulation for longevity
4 Tinned copper earth braid and Alum foil protection or tinned copper braid
5 Option of100, 130,150,160 watts per sqm or 200 watts per sqm for conservatories & other areas where higher output is needed.



Each kit includes

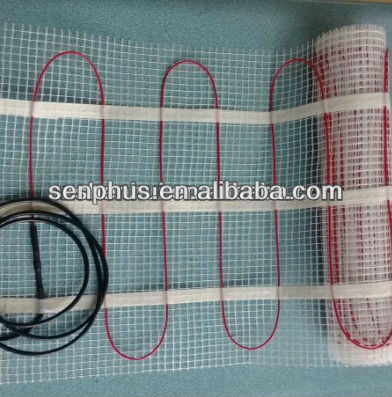

1 Underfloor Heating Cable Mat stitched on self-adhesive mesh
2 Digital, fully programmable thermostat with built in timer
3 Floor sensor
4 Detailed Instructions

5.Thermostat
