Brand Name: SENPHUS
Model Number: SHHM-160
Place of Origin: Jiangsu, China (Mainland)
Type: Floor Heating Systems
heated floor mat voltage: 100~240V
heated floor mat power: 90w/m2, 100w/m2, 130w/m2, 150w/m2, 160w/m2, 170w/m2, 200w/m2
heated floor mat color: white, red, yellow, etc. If you need other color, you could tell us.
heated floor mat models: 0.5m2 1.0m2, 5m2, 6m2, 7m2, 8m2, 9m2, 10m2, 11m2, 12m2, 15m2.
cold cable length: 2m, 3m ,4m, etc.
heating cable color: blue, orange, red, purple, rose, etc
heating cable: single or twin conductor
heating cable printing: you decide
heat floor mat width: 0.5m
heat floor mat lengh: 1m~30m
heated floor:
Senphus produce many kinds of heated floor, underfloor film heater :
underfloor film heater power: 90w/sq.m 100w/sq.m 130w/sq.m 150w/sq.m 160w/sq.m 170w/sq.m 200w/sq.m
underfloor film heater Voltage: 24V, 110V, 120V, 220V, 230V, 240V
underfloor film heater models: 0.5~15sq.m
You always could find the proper heated floor mats in our company, no matter your voltage, power, and model needs are so special.
underfloor film heater Installation instructions:
underfloor film heater can not be cut at will, or overlapping, and the cable space cannot be closer than the spacing of cables assembled on the mat.
heating film can be installed under floor tiles, natural stone, laminate or wooden floor.
Thermal resistance of the floor construction above heating mat should be as low as possible.
Do not step on the film during installation.
Avoid sharp objects and incautious pouring of concrete or filler. No big air gaps are allowed in the concrete or filler. Always pay attention to instructions for the floor covering adhesive. Heating mat shall be installed in min. 5 mm of concrete or filler.
Do not lay heating cable in areas that might be damaged by drilling, might be covered by cupboards or under a heat source such as a stove etc.
The subfloor should be clean, plain, stable and rigid, without cracks, sharp objects.
The concrete subfloor must be completely dry before installing the floor heating system. Heating mat can be fixed, if required, to the subfloor by means of glue or staples.
Fixing with staples is only allowed in the net, and never over the heating cable.
underfloor film heater specifications:
Type |
voltage |
Rated power |
Resistance @20oC+10/-5% |
Mat size |
Length |
V |
W |
Ω |
m |
m |
|
SHDN-160-1.0M2 |
220 |
160 |
302.5 |
0.5X2.0 |
11.1 |
SHDN-160-1.5M2 |
220 |
240 |
201.7 |
0.5X3.0 |
16.65 |
SHDN-160-2.0M2 |
220 |
320 |
151.3 |
0.5X4.0 |
22.2 |
SHDN-160-2.5M2 |
220 |
400 |
121.0 |
0.5X5.0 |
27.75 |
SHDN-160-3.0M2 |
220 |
480 |
100.8 |
0.5X6.0 |
33.3 |
SHDN-160-3.5M2 |
220 |
560 |
86.4 |
0.5X7.0 |
38.85 |
SHDN-160-4.0M2 |
220 |
640 |
75.6 |
0.5X8.0 |
44.4 |
SHDN-160-4.5M2 |
220 |
720 |
67.2 |
0.5X9.0 |
49.95 |
SHDN-160-5.0M2 |
220 |
800 |
60.5 |
0.5X10.0 |
55.5 |
SHDN-160-6.0M2 |
220 |
960 |
50.4 |
0.5X12.0 |
66.6 |
SHDN-160-7.0M2 |
220 |
1120 |
43.2 |
0.5X14.0 |
77.7 |
SHDN-160-8.0M2 |
220 |
1280 |
37.8 |
0.5X16.0 |
88.8 |
SHDN-160-9.0M2 |
220 |
1440 |
33.6 |
0.5X18.0 |
99.9 |
SHDN-160-10M2 |
220 |
1600 |
30.3 |
0.5X20.0 |
111 |
SHDN-160-12.0M2 |
220 |
1920 |
25.2 |
0.5X24.0 |
133.2 |

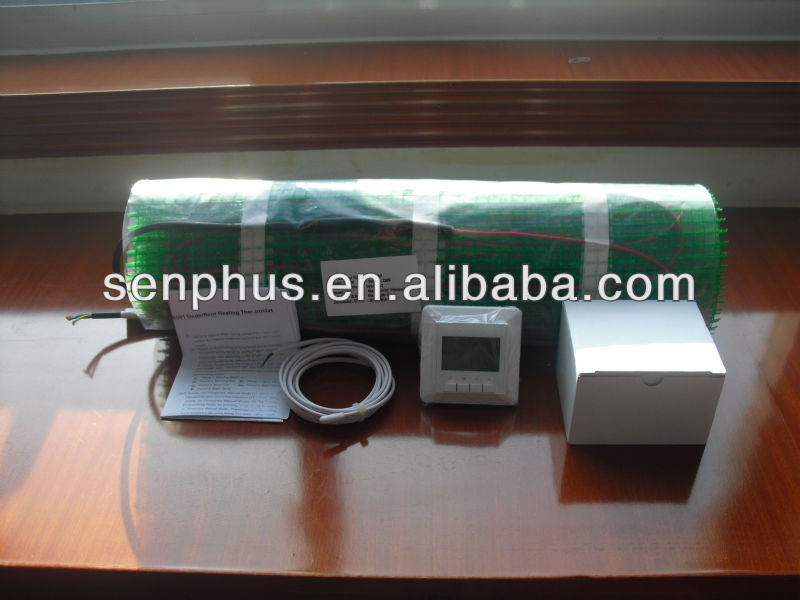

underfloor film heater pictures and package, workroom
underfloor film heater certificate:
