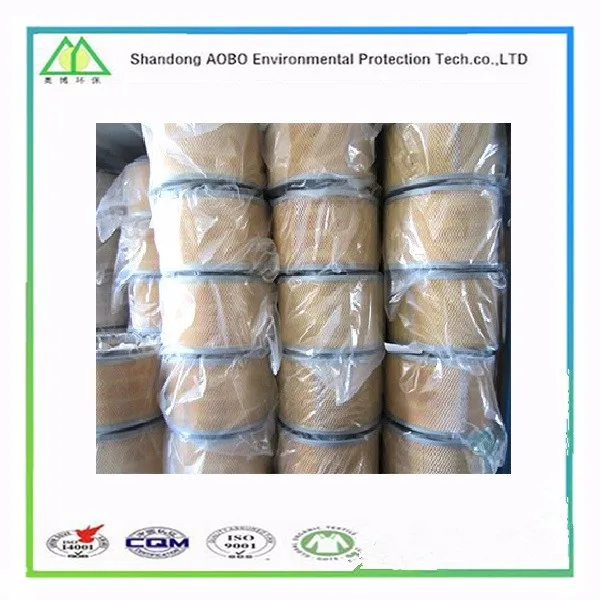

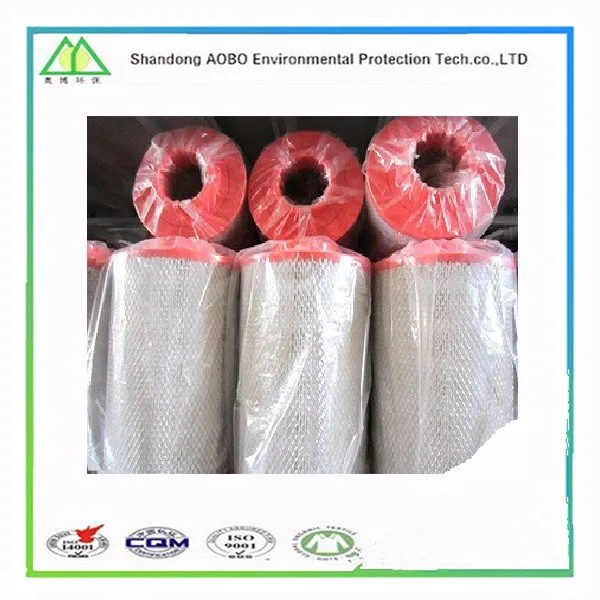

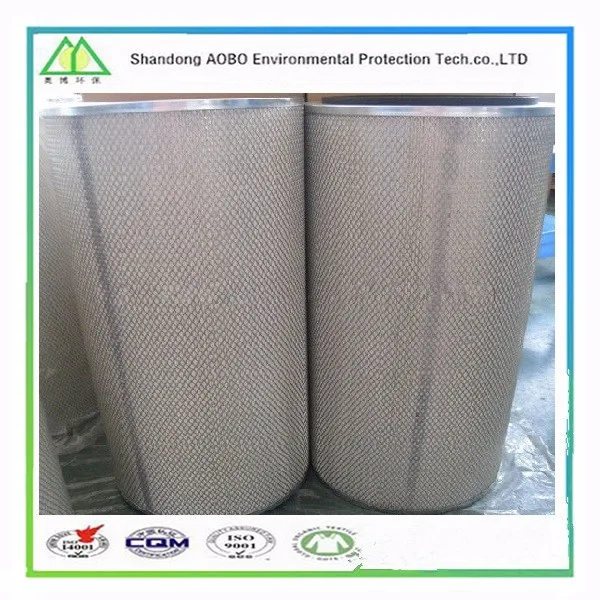

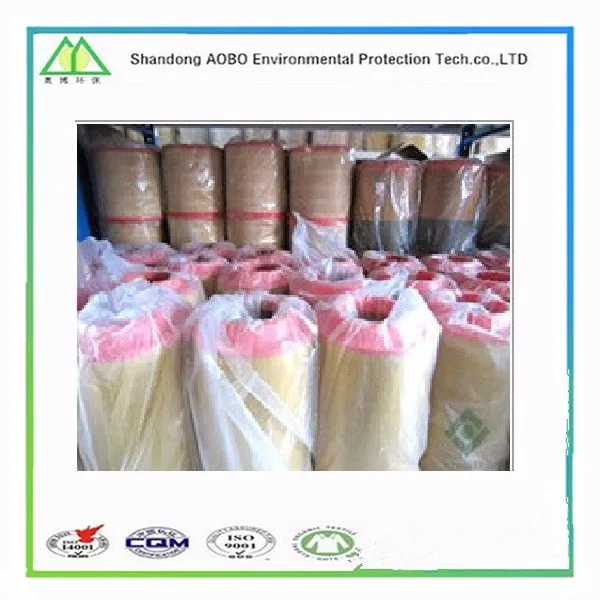

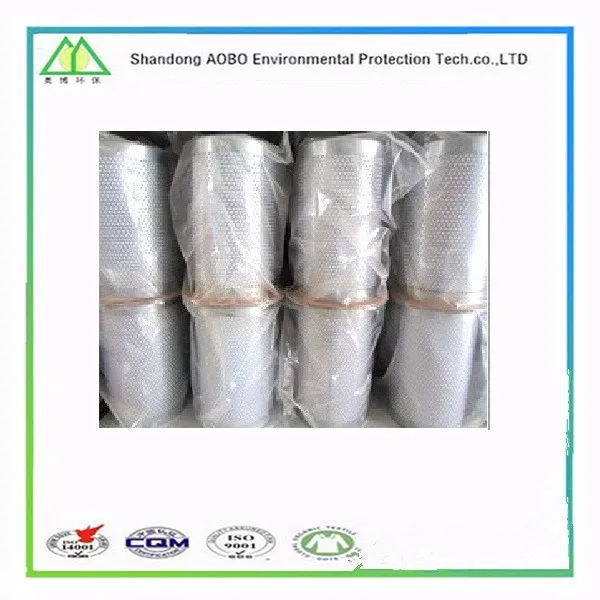

Carbon Air Filter Cartridge Air Dust Filter For Collection

Carbon Air Filter Cartridge Air Dust Filter For Collection

FOB Price:
US 1-5 / Piece
Min.Order Quantity:
100 Piece/Pieces
Supply Ability:
100000 Piece/Pieces per Month
Port:
Qingdao
Place of Origin:
Shandong, China (Mainland)
Payment Terms:
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Brand:
aobo
Products Model:
aobo-media-1
Share:
  • Products Details
  • Company Profile

Quick Details

  • Brand Name: aobo

    Model Number: aobo-media-1

    Place of Origin: Shandong, China (Mainland)

  • Condition: New

    Efficiency: 99%

    Construction: Bag Filter

  • Filtration Grade: Pre Filter

    Medium Material: Active Carbon

    Porosity: 5um

  • Dimension(L*W*H): Standard Size

    Weight: 2kg

    Certification: ISO9001

  • Warranty: 1 Year

    After-sales Service Provided: Engineers available to service machinery overseas

    Temperature: 120

  • Color: White

    Filter objects: ≥5μm

    Size: Customsize

Packaging & Delivery

  • Packaging Details: vacuum or compressed packaged in double polybag. The roll size is up tocustomer requirement Packing exterior: Poly woven Bag or as customer's request
  • Delivery Detail: Shipped in 15 days after payment

Specifications

Product Description

Specification

Type: High performance compact panel filter

Media: Wet-laid glass fiber paper

Frame: Aluminum/Stainless steel/Cardboard/ABS

Separator: Hot-melt glue

Protective screening: High strength metal retainer with painting processed

Recommended final pressure drop: 350Pa

Temperature: 90ºC maximum in continuous service



Application

For limited space of air supply system



Advantages

95 pleats/feet,20% higher than normal product, bring lower resistance and longer life

Ultra-fine glass fiber paper, good stability of filtration efficiency

Perfect structure of "V" shape, effectively reduce the system resistance

Light, compact structure

Double side retainers


Model
Outside Dimensions(mm)
Rated air flow(m3/h)
Initial resistance(Pa)
Efficiency(%)
Dust capacity(g)
610×610×50
700
<=220 or<=140(HV)
≥99.99
450
915×610×50
1000
<=220 or<=140(HV)
≥99.99
680
1220×610×50
1400
<=220 or<=140(HV)
≥99.99
900
610×610×69
1000
<=220 or<=140(HV)
≥99.99
560
610×610×69
1500
<=220 or<=140(HV)
≥99.99
840
1220×610×69
2000
<=220 or<=140(HV)
≥99.99
1120
610×610×80
1200
<=220 or<=140(HV)
≥99.99
650
610×610×90
1400
<=220 or<=140(HV)
≥99.99
750
610×610×100
1600
<=220 or<=140(HV)
≥99.99
850
1170×570×69
1800
<=220 or<=140(HV)
≥99.99
1000
1170×570×80
2200
<=220 or<=140(HV)
≥99.99
1250
1170×570×80
2500
<=220 or<=140(HV)
≥99.99
1300
1220×610×90
2800
<=220 or<=140(HV)
≥99.99
1500
1220×610×100
3200
<=220 or<=140(HV)
≥99.99
1700
Product Description

Features

Frame: Paper, Aluminum

Media: Non-woven reinforced cotton &synthetic media

Media support grid: welded steel wire, anti-corrosive

Fire retardant grade: UL-2 listed. (UL 900)

Humidity: <= 100% RH

Recommended Max. Final Pressure drop: <=225 P



Applications

Pre filters for commercial & industrial AHU.




Advantages



Metal mesh support at downstream, with strengthening cross together

"V" shape of stainless steel wire designed at the upstream, user can replace the material very easy ,the frame can be reused

Filter media and frame bonded by adhesive, can ensure no bypass or leakage even under large air flow

Hasp avaiable, if needed by installation type


Model
Outside Dimensions(mm)
Rated air flow(m3/h)
Initial resistance(Pa)
Efficiency(class)
Filter media
295×295×10/20mm
800m3/h
25Pa
40%

weight
G1

G2

G3
Non-woven reinforced cotton & synthetic media
12″×12″×1/2″/1″
495×295×10/20mm
1300m3/h
25Pa
20″×12″×1/2″/1″
495×495×10/20mm
2200m3/h
25Pa
20″×20″×1/2″/1″
595×295×10/20mm
1600m3/h
25Pa
24″×12″×1/2″/1″
595×295×10/20mm
1600m3/h
25Pa
24″×12″×1/2″/1″
595×595×10/20mm
1600m3/h
25Pa
24″×24″×1/2″/1″
Our Service

1.We are Alibaba Assessed 9 years Gold Supplier.

2.We are a factory manufacturing polyester padding,best production capability ,best quality control, Best Service .

3.Inspected by the Inspection Institution of ISO 9001:2008.

4.100% QC inspection Before Shippment.

5. CE/UL/SGS listed,competitve price.


Sample lead time:1~7 days, Free sample,

We do quotation within 2 days and welcome your any inquiry at any time.


1.A: Welcome any OEM requirements.

B: We offer instruction for customers to the usage of our product.

C: We offer goods return and goods exchange for reasonable situation.

D: We’ve got experts ready to solve some professional questions.

E: Professional shipping service if necessary.

F: We can produce products according to customer’s request.
