Home > Products > Refrigeration Fittings > Condenser

Model FNV-200 52.5KW Heat exchanger 200 Heat transfernarea FNV type condenser

FOB Price:

US 400-1,500 / Piece

Min.Order Quantity:

1 Piece/Pieces

Supply Ability:

1000 Piece/Pieces per Month

Port:

Shanghai

Place of Origin:

Jiangsu, China (Mainland)

Payment Terms:

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Brand:

Copeland Dongwei Leek Cooltech

Products Model:

Products Details
Company Profile

Quick Details

Brand Name: Copeland Dongwei Leek Cooltech

Model Number: --

Place of Origin: Jiangsu, China (Mainland)
Type: Condenser
Certification: CE, CSA, GS, ROHS, UL
After-sales Service Provided: No overseas service provided
type: cold room Box Type condensing unit

Packaging & Delivery

Packaging Details: Pallet carton
Delivery Detail: 45 days after receipt of advance

Specifications

Model FNV-200 52.5KW Heat exchanger 200 Heat transfernarea FNV type condenser

FNV type condenser technologhy parameters

Model	Heat exchanger	Heat transfernarea	Fanmotor					The liquid inlet tube	The liquid outlet pipe
			Number of fans	Power	Air volume	Wind leaf	Voltage

	KW	m²	N	W	m³/h	mm	V	Φmm	Φmm
FNV-60	17.7	60	2	200×2	3000×2	400	380	22	16

FNV-80	23.6	80	2	270×2	4500×2	450	380	25	19

FNV-100	29.5	100	2	450×2	6000×2	500	380	25	19

FNV-120	35.4	120	2	450×2	6000×2	500	380	25	19

FNV-140	41.3	140	2	600×2	8000×2	550	380	28	19

FNV-160	44.3	160	2	750×2	10000×2	600	380	28	22

FNV-180	47	180	2	750×2	10000×2	600	380	28	22

FNV-200	52.5	200	2	800×2	12000×2	630	380	28	22

FNV-220	58.5	220	2	800×2	12000×2	630	380	32	22

FNV-240	64.5	240	3	600×3	8000×2	550	380	32	22

FNV-260	70.5	260	3	750×3	10000×2	600	380	32	22

FNV-280	76	280	3	750×3	10000×2	600	380	35	28

FNV-300	82.5	300	3	800×3	12000×3	630	380	35	28

FNV-320	88.5	320	3	800×3	12000×3	630	380	35	28

FNV-360	97.3	360	3	800×3	12000×3	630	380	42	28

FNV-400	112	400	4	750×4	10000×4	600	380	42	28

FNV-480	136	480	4	800×4	12000×4	630	380	54	28

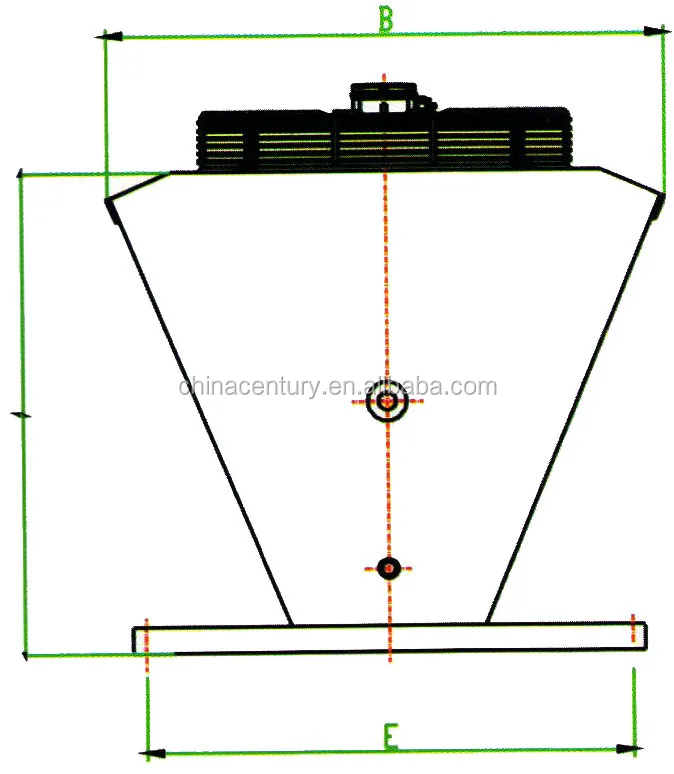

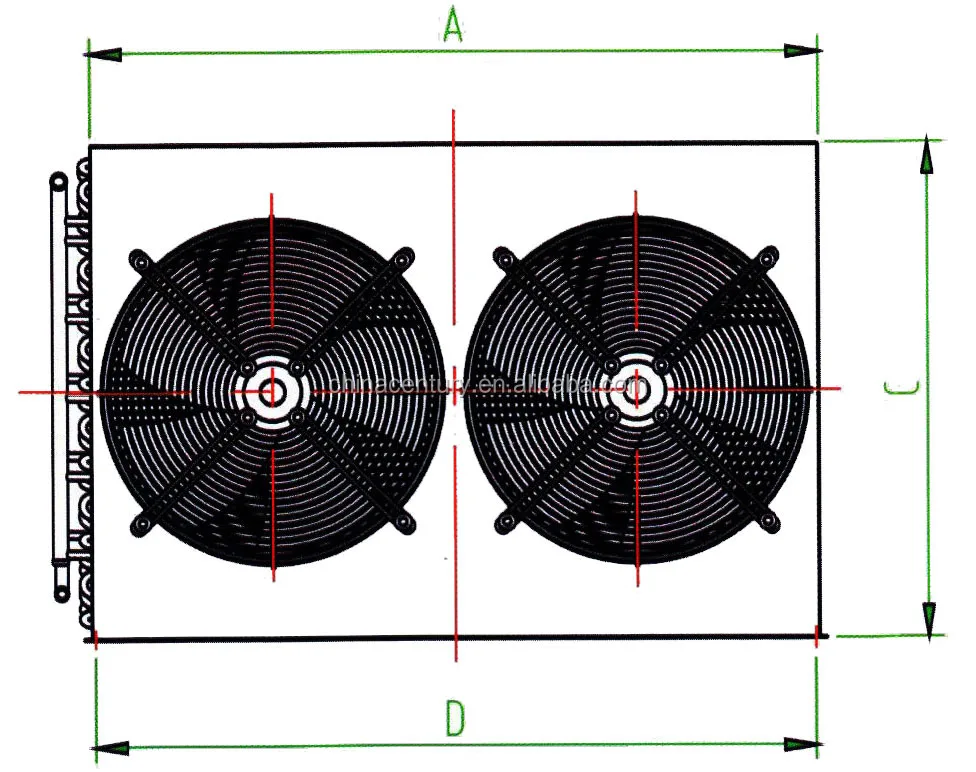

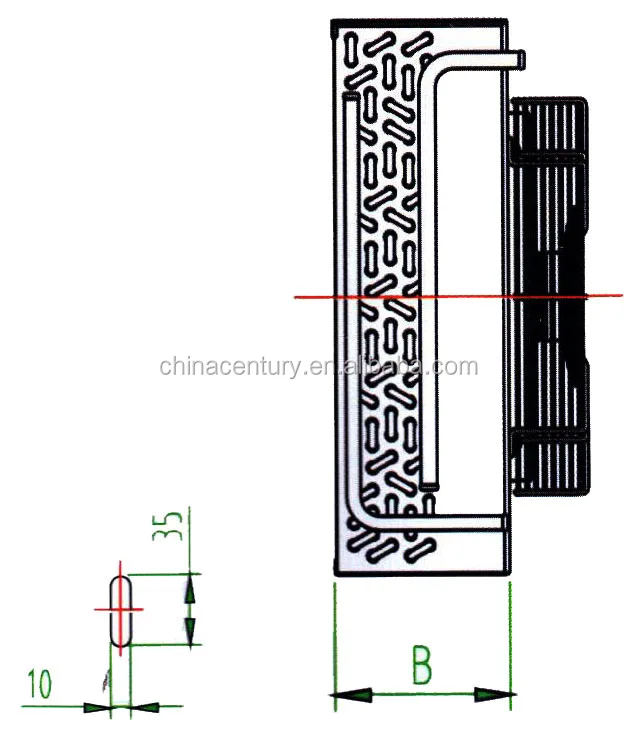

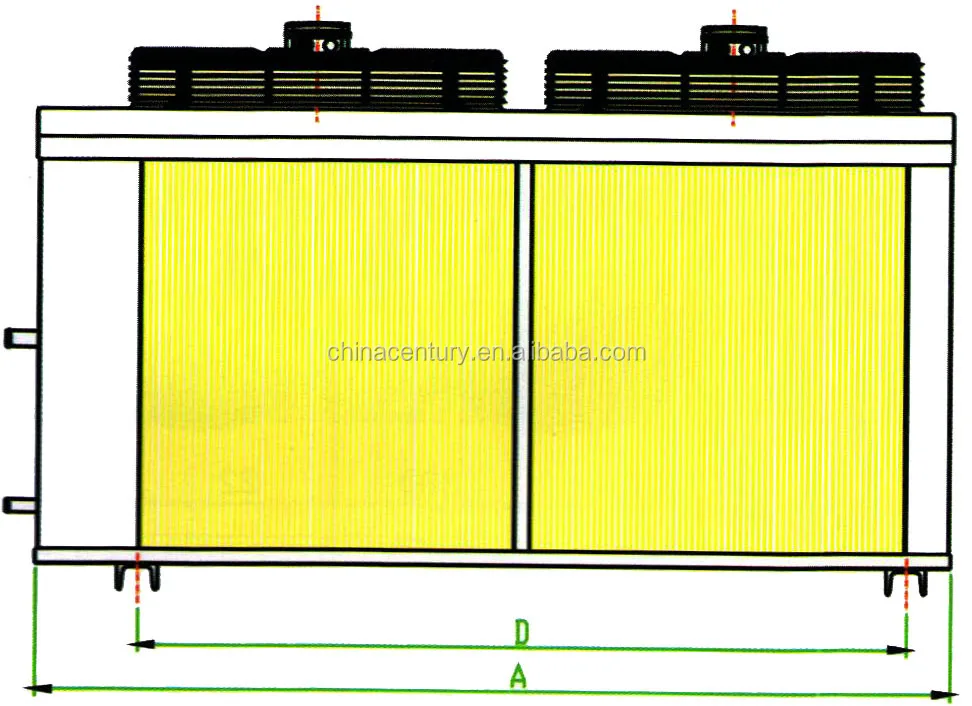

FNV over all andinstalling dimensions

Model	A	B	C	D	E
FNV-60	1090	800	680	890	600
FNV-80	1340	800	680	1140	600
FNV-100	1340	850	680	1140	650
FNV-120	1340	850	780	1140	700
FNV-140	1520	900	780	1320	750
FNV-160	1720	950	780	1520	750
FNV-180	1720	950	880	1520	800
FNV-200	1850	1000	880	1650	800
FNV-220	2000	1000	880	1800	800
FNV-240	2220	950	880	2020	750
FNV-260	2410	950	880	2210	750
FNV-280	2500	950	880	2280	750
FNV-300	250	1000	980	2300	800
FNV-320	2630	1000	980	2430	800
FNV-360	2650	1100	1080	2450	900
FNV-400	3200	1000	980	3000	800
FNV-480	3500	1100	1080	3300	900

Product

Transport

We are Dongwei Group subsidiary.
We are a professional supplier in China, specialized in manufacturing and exporting the refrigeration & A/C equipment and accessories.

Our major products include hermetic compressor (both used for air-condition and commercial refrigeration), water-cold condenser, fan-cold condenser, evaporator, air-cooler, fan-cold condensing unit, water-cold condensing unit, refrigerant, freezer tool and A/C part, etc.

Our product and service has been sold to more than 30 countries and areas, including China, the USA, Italy, Turkey, Russia, South Korea, Japan, Hong Kong, Taiwan, Mexico, Venezuela, Brazil, Paraguay, Chile, Argentina, Thailand, Laos, Bangladesh, South Africa etc. Meanwhile, we can design and manufacture the product according to our clients' requests.

We honestly welcome new friends to visit us for communicating and cooperating with us. We hope we can establish good and long-term cooperation relations with new and old clients, hand in hand. We will move towards and create a splendid future jointly!
