Brand Name: LYTTE
Model Number: LTGZ Series
Place of Origin: Shandong, China (Mainland)
Condition: New
Structure: Shell and Tube Type Heat Exchanger
Voltage: 380V AC
Certification: CE, ISO
Warranty: 2 YEARS
After-sales Service Provided: Engineers available to service machinery overseas
Temperature of Cooling Water In: T1=12℃
Temperature of Cooling Water Out: T2=7℃
Evaporation Temperature: Te=2℃
Chilled Water Velocity: V=0.7-1.5m/s
Type: Shell and Tube Type Heat Exchanger
Advantage: High Efficient and Top Quality
High Efficient Top Quality Shell & Tube Heat Exchanger
Introduction:
1. They are designed and produced strictly in accordance with the National Standard and supervised under the national authority. We have specially manufacturing license for it.
2. The inner copper is high efficient grooved type.
3. The product has been tested under the gas pressure and water pressure, with 1.15MPa for shells and 1.9MPa for pipes.
4. Qualified clean process, make its clearness good to all type of refrigerants
5. The product has water drainage devices, for protect it from being freezing side in the winter.
6. Good quality welding makes it no debris and impurities left.
7. Overheat pipes are employed to ensure efficiency
Model Specification
GZ 2 X 5
GZ: Series Name
2: System Qty, empty for single System
5: Normal Capacity RT (1RT=3.516KW)
Condenser Design Condition
Temperature of Cooling Water In; T1=12°C
Temperature of Cooling Water Out; T2=7°C
Evaporation Temperature Te=2°C
Chilled Water Velocity V=0.7-1.5m/s

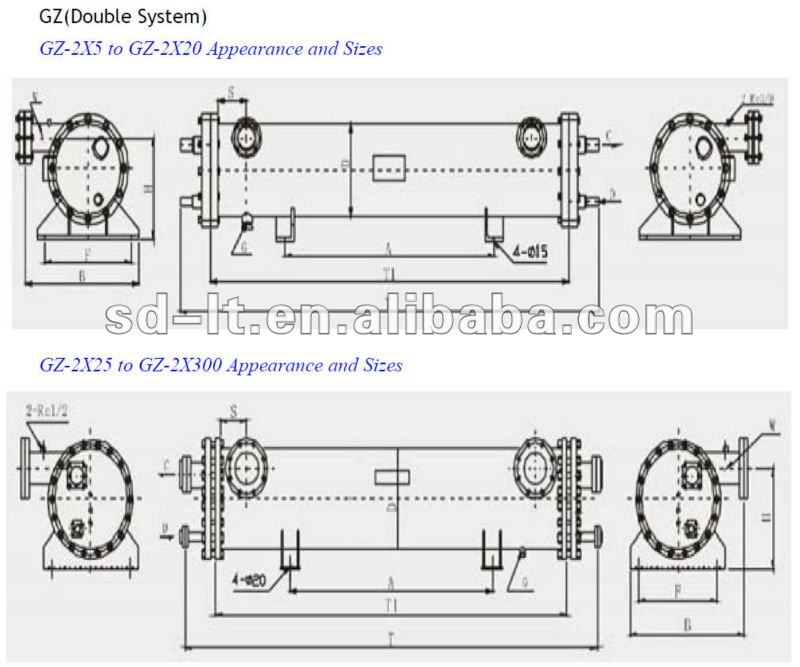

Overall Appearance and Sizes
Technical Data:
Model | Heat Exchange (KW) | Heat Exchange Area (m2) | Water Flow | Overall Size (mm) | Installation Size (mm) | ||||||
m3/h | D | T | T1 | B | H | F | A | S | |||
LTGZ-05 | 17.5 | 1.93 | 3 | 168 | 1060 | 914 | 290 | 202 | 150 | 600 | 90 |
LTGZ-08 | 28 | 2.81 | 5 | 219 | 1060 | 914 | 350 | 253 | 200 | 600 | 90 |
LTGZ-10 | 35 | 3.55 | 6 | 219 | 1060 | 914 | 350 | 249 | 200 | 600 | 90 |
LTGZ-15 | 53 | 4.65 | 9 | 219 | 1350 | 1200 | 350 | 244 | 200 | 800 | 90 |
LTGZ-20 | 70 | 7 | 12 | 273 | 1350 | 1200 | 420 | 298 | 250 | 1200 | 100 |
LTGZ-25 | 88 | 8.76 | 15 | 273 | 1650 | 1500 | 420 | 318 | 250 | 1200 | 100 |
LTGZ-30 | 105 | 9.34 | 18 | 273 | 1750 | 1600 | 420 | 318 | 250 | 1200 | 100 |
LTGZ-35 | 122 | 10.5 | 21 | 273 | 1950 | 1800 | 420 | 310 | 250 | 1400 | 120 |
