Brand Name: LYTTE or OEM Service
Model Number: JZBLG
Place of Origin: Shandong, China (Mainland)
Type: Condensing unit
Certification: CE
After-sales Service Provided: Engineers available to service machinery overseas
Name: Refrigeration compressor rack
Compressor Type: Semi-hermetic Screw Type
Power Supply: 380V/3P/50HZ
Applicable Temperature: -40℃~-25℃
Cooling Type: Water Cooled/Air Cooled
Certificates: CE, ISO9001
Refrigerant Type: R22, R404A
Low Temperature Semi-hermetic Screw Type Compressor Racks(Bitzer Screw Compressors), refrigeration compressor rack
Introduction:
With the rapid development of the refrigeration equipment market, a large of low temperature cold storage, ice making equipment,frozen cooling equipment become more and more,now piston compressors have been difficult to meet the needs of these devices. Our company design and R&D JZBLGS(F) Series which are a kind of low temperature senihermetic screw compressor compressor racks for condensing units can meet the demands of -40°C to -25°C cold room.
Features:
1. Bitzer semi-closed low-temperature screw compressors are selected with high efficiency,low vibration&noise, good reliability;
2. Refrigeration parts and control components are chosen world famous brand with good reliability;
3. Protection of compressor reversal, overheating, overload, exhaust temperature, low oil level, oil flow and system high and low pressure and other security to ensure the reliability of the run
4. Units running with economizer which improve the cooling capacity;
5. multi-level energy regulation, can be adapted to changes in cooling load, reduce energy consumption.
Model Specifications:
JZB B LG S 3 --- 180 J Y
JZB---LVTE Company Products Code, JZB:parallel Connection; JZ:Single Compressor
B---Compressor Brand, B:Bitzer
LG---Compressor Type: Semi-hermetic Screw Type
S---S: Water-Cooled; F:Air-Cooled
3---3:Compressor Quantity(None:1)
180---Compressor Power Inpout(HP)
J---Temperature:-40°C~ -25°C
Y---Refrigerant, Y-R404A, ----: R22
Water Cooled 2-Stage Compressor Racks,-40°C~ -25°C, R22 Units
1.Water Cooled Single Compressor Rack: JZBLGS-50J to JZBLGS-160J(50HP-160HP)
2.Water Cooled 2 Compressors Racks: JZBBLGS2-100J to JZBBLGS2-320J(100HP-320HP)
3.Water Cooled 3 Compressors Racks: JZBBLGS3-150J to JZBBLGS3-375J(150HP-375HP)
4.Water Cooled 4 Compressors Racks: JZBBLGS4-200J to JZBBLGS4-300J(200HP-300HP)
Air Cooled 2-Stage Compressor Racks,-40°C~ -25°C, R22 Units
1.Air Cooled Single Compressor Rack: JZBLGS-50J to JZBLGS-160J(50HP-160HP)
2.Air Cooled 2 Compressors Racks: JZBBLGS2-100J to JZBBLGS2-320J(100HP-320HP)
3.Air Cooled 3 Compressors Racks: JZBBLGS3-150J to JZBBLGS3-375J(150HP-375HP)
4.Air Cooled 4 Compressors Racks: JZBBLGS4-200J to JZBBLGS4-300J(200HP-300HP)
Main Parts Instructions
Main Parts: Low Temperature Semi-hermetic Low Temperature Bitzer Compressor Oil Separator Oil Cooler Oil Components Condenser (only for water-cooled) Liquid Storage Tank Tube Filter Liquid Sight Gauge Economizer Components Suction Filter Pressure Protector Pressure Gauge Controlling Box(PLC+Touch Screen)

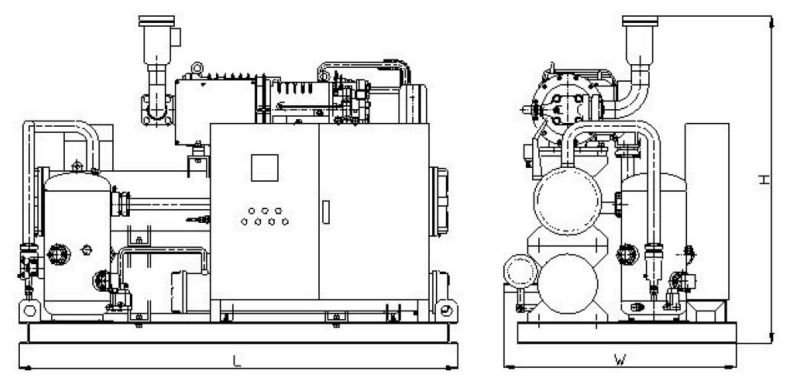

Water Cooled 2-Stage Single Compressor Racks Overall Sizes
Water Cooled 2-Stage Paralleled Compressor Racks Overall Sizes

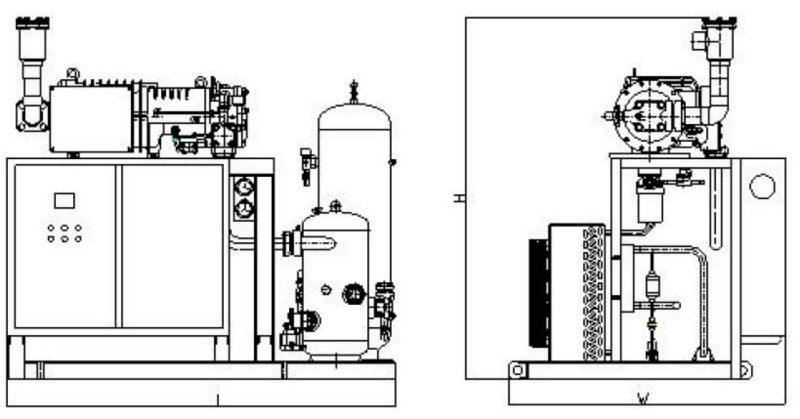

Air Cooled 2-Stage Single Compressor Racks Overall Sizes
Air Cooled 2-Stage Paralleled Compressor Racks Overall Sizes
