Brand Name: Kimay
Model Number: Display cooler series
Place of Origin: Anhui, China (Mainland)
Type: Display Cooler
Style: Single-temperature
Certification: CE
Capacity: customized
Temperature: -60 - -105, -86 - -135
Climate Type: air cooling
Refrigerant: R404a
Material: stainless steel
Color: customized
power: 220V/380V/50HZ
Compressor: Danfoss Sanyo
Application: frozen & storage at low temp, for food, drug and medicine
Cooling type: air cooling
Defrost Type: Automatic defrost
Temperature Control: Adjustable Thermostat
Usage: in medicine, health, food, chemical, scientific research
Lighting: LED

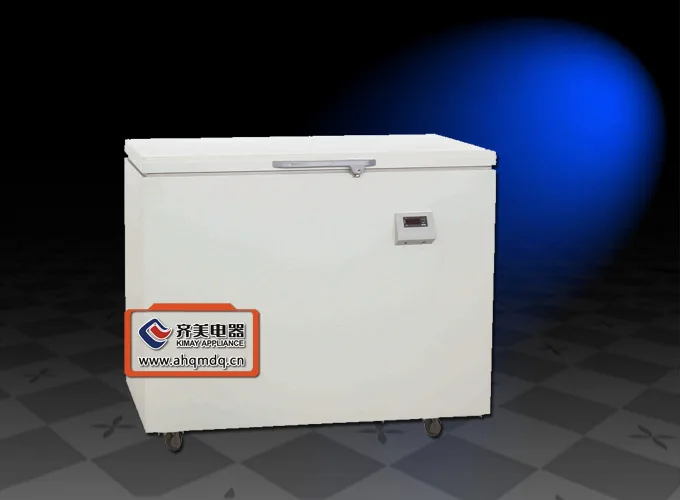

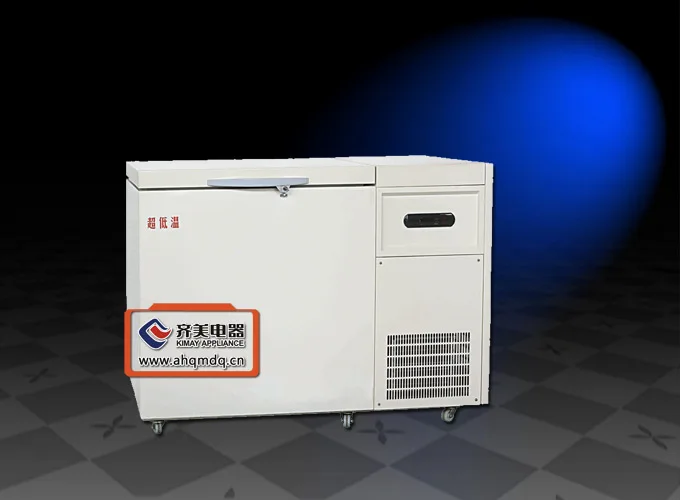

1. Product Pictures
2. Detailed Description
1) Characteristics:
A. Suitable for scientific research institution, Ultra-low laboratory of special materials, military,
electronic industry, chemical industry, university laboratory, biology engineering, Pelagic Fishing, etc.
B. Can be used to save the virus, germs, red blood cells, white blood cells, bone, skin, bacteria, semen, biological products, ocean products, electronic component and also do experiment at low temperature etc
2) Safety system:
A. Having perfect alarm system, having the function of a buzzer sound and light flashing alarm;
B. Can realize high and low temperature alarm and sensor fault alarm functions;
C. Multiple protection function (password protection, frequent start protection, refrigeration system keeps running when sensor failure)
3) Temperature control:
A. Microcomputer digital control, digital display temperature, the temperature in the cabinet is adjustable, adjusting unit is 0.1℃;
B. Could set a difference in temperature when powered on and powered off, high and low temperature alarm, alarm temperature can be set as needed
4) Cooling system:
A. Super thick foam layer, double seal design of the door body, effective protection of the temperature in the cabinet;
B. Optimization of the cascade refrigeration system, imported compressor, having efficient refrigeration;
C. A reasonable set of evaporator, ensuring the flow of refrigerant is the most effective and the uniformity of temperature in the cabinet;
D. Unique fluorine-free environmental mixed refrigerants, 100% without green fluorine;
E. Single compressor system, less component, failure rate is low, Energy consumption is small;
F. Adopting Germany EBM mute fan, performance is stable and having Low noise
5) Humanized design:
A. Built-in stainless steel shelves, flexible in use, easy to clean;
B. The food grade stainless steel interior tank, never rust, safety assured;
C. Heavy duty caster design, convenient in mobility;
D. Security door lock design, prevent opening at will;
E. Control part of the overhead installation design, convenient operation;
F. LED temperature display, easy to observe;
G. Suitable for 10 ~ 30℃ environment;
H. Optional installation of digital temperature recorder, convenient for special case of recording and saving the performance data
I. Equipped with USB interface, when needed, users can connect it to USB data and copy & analysis;
J. Wide voltage design: could be used under 187 v ~ 242 v AC voltage
3. Product Datasheet
Model |
External Dimension(mm) |
Internal Dimension(mm) |
Voltage(V/Hz) |
Power |
Inside Temp |
Effective Volume (l) |
Net Weight(Kg) |
||||
W |
D |
H |
W |
D |
H |
||||||
YW-04-A |
1270 |
780 |
965 |
500 |
400 |
560 |
220/50 |
550 |
-60℃~-105℃ |
118 |
108 |
YW-04-B |
1270 |
780 |
965 |
500 |
400 |
560 |
220/50 |
550 |
-86℃~-135℃ |
118 |
108 |
4. Our Workshop
