heat insulation pipe for air conditioner

FOB Price:

US 0.05-3 / Meter

Min.Order Quantity:

1000 Meter/Meters

Supply Ability:

200,000 Meter/Meters per Day

Port:

Shanghai

Place of Origin:

Jiangsu, China (Mainland)

Payment Terms:

L/C,T/T,Western Union

Brand:

insoflex

Products Model:

C-010

Products Details
Company Profile

Quick Details

Brand Name: insoflex

Model Number: C-010

Place of Origin: Jiangsu, China (Mainland)
Type: HVAC Systems
Color: red/black/white/customized
Inner diameter: 6mm-89mm
Wall thickness: 9mm
Length: according to request

Packaging & Delivery

Packaging Details: PE bag/ export carton
Delivery Detail: within 15 days after receiving deposit

Specifications

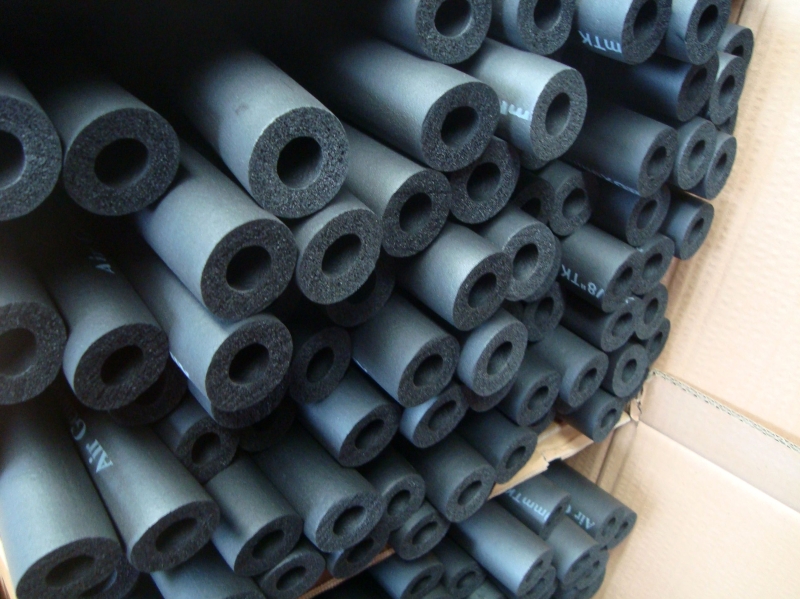

Heat insulation pipe for air conditioner
1>SGS, ISO9001:2008 certify
2>ID from 6mm to 89mm
3>Flame grade: B1

Heat insulation pipe for air conditioner

Characteristics:
1. Closed-cell Structure.
2. Low Heating Conductivity.
3. Low Water Absorption Rate.
4. Good Fireproof and Soundproof Performance.
5. Good Aging Resistance Performance.
6. Simple and Easy Installation.

Application:
Be used to retard heat transmission and control condensation from chilled-water and refrigeration systems. It also efficiently reduces heat transfer for hot-water plumbing and liquid-heating and dual-temperature piping
It is ideal for applications in:
Ductwork
Dual temperature and low pressure steam lines
Process piping
Air-conditioner, including hot gas piping

Technical specifications:
Property	Unit	Value
Density range	kg/m³	50~100
Flammability	-	B1
Oxygen index	%	≥33
Thermal conductivity	-	-
Average tempreture -20°C 0°C 40°C	w(m.k)	≤0.032 ≤0.035 ≤0.037
Moisture resistance factor	-	≥5x10³
Water absorption ratio in vacuum	%	≤10
Dimension stability 105°C ±3°C, 7d	-	≤10
Ozone resistance 200h	%	Good, not cracking
Compress resilience ratio Compression ratio 50% Compression time 72h	%	≥70
Aging resistance	-	150 hours, slight wrinkles, no cracks, holes or distortion
Dimensions	-	Pipes/tubes are in 1.83 mtr or 1.85 mtr length Sheet in rolls 1 mtr or 2 mtr width

CHINA BRYTUM INDUSTRIAL CO., LTD has advanced technology. Our soft heat-insulation materials are made of first-class NBR and PVC as well as various high-quality auxiliary materials. Continuous foaming technique is adopted in our production.

The features of our materials are heat insulation/preservation and voice absorption.

NBR, PVC and rubber/plastic foaming insulation materials are widely used in the ventilation system and water supply system of buildings.

Our products are soft, nonfreezing, heat-resistant, fire-resistant, waterproof, shock-absorbing and voice-absorbing. Because of excellent functions, our products are now widely used in construction, business, industrial equipment, connection tubes, automobile air conditioners and wallboard. Our products play an active role in air-conditioning system to preserve/insulate heat.
