Digital Thermostat Cooling Fridge ED108

                                           About Shangfang

       We're the manufacturer and have been customizing temperature controllers and humidity controllers for heating and refrigeration equipment manufacturers since 1998.

The controllers are UL, CE, CQC, TUV , ISO9001:2000 and RoHS approved.

We believe that " Concentration leads us professional."

We are GMC(Global Manufacturer Certificate).

                                        Product Description

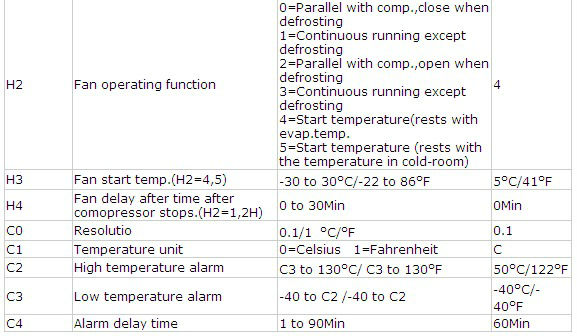

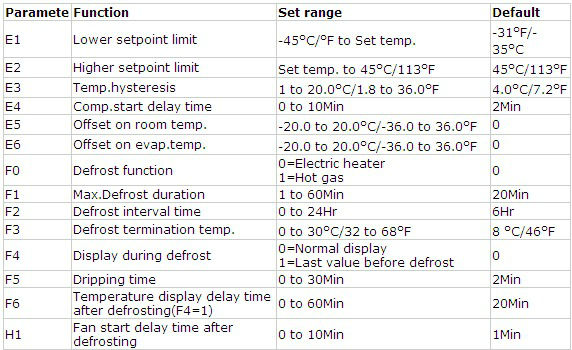

                                        Technical Data

Commercial fan cooling freezer thermostat ED108

1. Ideal for fan cooling freezers of low temperature

2. Temperature control

3. Evaporator fan control

4. With built-in transformer / compressor control

5. Manual / automatic defrost by electric heaterhot gas

6. Time / temp. setting to end defrosting

7. High/ low temperature alarm

8. Re-start delay

9. Parameter locking

10. Temperature range:-45 to 100^oC(-45 to 150^oF)

11. Accuracy: ±1.0^oC(±1.8^oF)

12. Sensor:NTC, 2pcs (room temperature & defrosting control)

13. Power supply: 230VAC or 120VAC  50/ 60 Hz

14. Compressor:16A/250VAC

15. Defrosting:10A/250VAC

16. Evap.Fan:5A/250VAC

17. Dimension: 77(L)×35(W)×60(D)mm

18. Mounting hole dimension:71(L)×29(W)mm

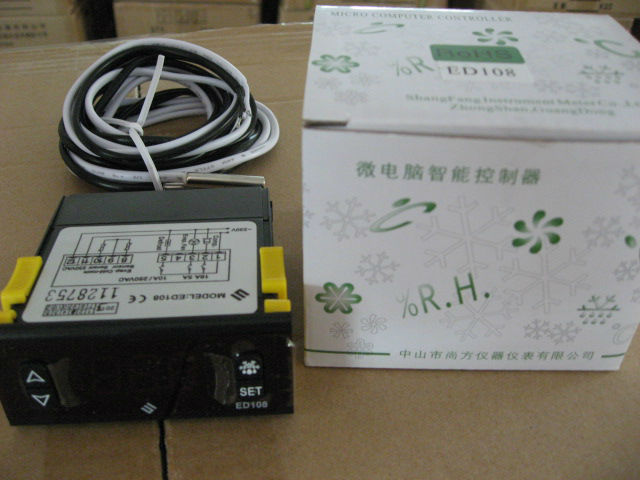

                                           Product Show

sensors

Packing: 50pcs/carton

                                          Certification

                                     Our Factory

                                              What We Supply

  Transparent and waterproof panel, equip with anti-drip case on the back.

                               2013 China Refrigeration Exhibition

                   How to choose a suitable model with Shangfang

                     Thank you for your interest to our product.

*Do you feel confused that the model is not perfectly meet your require?

*Do you think that you don't really understand the specification well?

       Dear friends, What are you waiting for?  Please contact us now.

+We will provide you the detail specification, more photos etc.

+We have professional technical team will solve your problem.

+And there are many customized options, so there is always one suitable for you.

+Custom product for acceptable order quantity.

   Shangfang controller, your BEST CHOICE!!

            We look forward to hear from you! Have a nice day!

                                     Contact Information
