Brand Name: Baiyilun
Model Number: BYL107B
Place of Origin: Zhejiang, China (Mainland)
Type: Floor Heating Systems
Certifications: ISO9001:2000 ISO14001:2004
Standard or Nonstandard: Standard
Structure: control
Color: White/Green/Blue
Temperature of Media: Medium Temperature
Programmable or Non-programmable: Both
Temperature range: 5-35 degree
3A/16A/30A large screen Programmable Fan Coil digital room thermostat
Avonflow Baiyilun TRV Co.,Ltd. specialized in the manufacture of thermostatic radiator valve.We have produced the products for ten years and got a lot of experience.
Since now ,we have exported our good to over 30 countries such as Russia,Romania, Greece,Croatia,Turkey, Poland, Ukraine and so on.
Underfloor heating programmable room thermostat
Load:3A/16A/30A
CE Certificated
General
BYL107B Touch Screen Heating Thermostat with weekly programming adopts the latest single-chip computer control technology. It has the high reliability and powerful anti-jamming.
Setting daily 3 periods of time and the setting temperature.
The selection for manual control or automatic periods of time control.
The application of electric heating of the electric heating equipment and Water heating system of electric heating re actuator control.
Basic function
Easy operation and utility.
Touch screen input, Nice looking and easy-cleaning.
Kinds of periods of time modes. 5+2/6+1/7
The maximum switch power is 3600W.
The wide voltage input: AC75-265V 50Hz/60Hz
Mini size junction box. It is suitable for the entire world.
The clock continues when power fail and it won’t affect the period of time settings.
Flame retardant and safe.
Extra over heating sensor label length: 3 meters
Technical parameters
Power Supply: 75-250VAC(24± 10% Optional), 50/60 Hz
Set point Range: 5 to 35°C (programmable)
Display Range: 0 to 40.0°C
Inside Sensor: NTC B=3380 10k @25degrees Celsius
Extra Sensor: Length=3M NTC B=3380 10k @25degrees Celsius
Setting Unit: 0.5°C / step
Indication Accuracy: 0.1°C
Dimension: 86 x 86 x 12mm ( H x W x D )
Weight: 175 g/piece
Inner Box Size: 100 x 100 x 60 mm

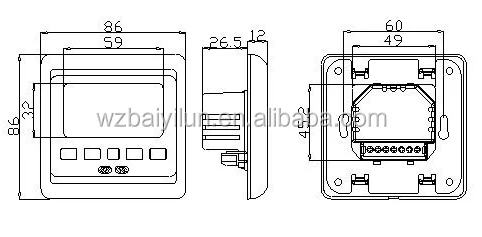

Dimensions:(unit: mm)
About Packing
50 sets per carton with paper box ,carton size:51x36x22 cm;
40 sets per carton for blister packing, carton size : 48x35x29 cm;
100 pieces per carton for only thermostatic head, cartons size: 40x30x30 cm;
60 pieces per carton for only thermostatic valve body, carton size: 41x25.5x26 cm;
About 20000 sets /20” container with blister packing;
About 25000 sets/20” container with carton box;
Pallet packing is available.
About Guarantee:
2 Years guarantee counted from the days arrived in your warehouse.
Specifications
Size:DN10(3/8"), DN15(1/2"),DN20(3/4''),DN25(1'') Angle valve ,Straight valve, 3 way valve, H valve
Used Connection Pipe:
PPR/PB/PE pipe,Red copper pipe,pex-al-pex pipe,Matel pipe
OEM condition
Logo for the thermostatic head, the MOQ is 3000 pieces.
Logo for the thermostatic valve body, the MOQ is 10000 pieces.
Payment terms:
30%TT as deposit payment,70%TT against the Copy of B/L
L/C is available.
Delivery terms:
FOB NINGBO or FOB SHANGHAI can be choosed.
The production time is 25 days normally.
