weldering machine

FOB Price:

US 22,000-25,000 / Set

Min.Order Quantity:

1 Set/Sets

Supply Ability:

10 Set/Sets per Month

Port:

Shanghai

Place of Origin:

Jiangsu, China (Mainland)

Payment Terms:

L/C,T/T,Western Union,MoneyGram

Brand:

SBKJ

Products Model:

SBSW-30

Products Details
Company Profile

Quick Details

Brand Name: SBKJ

Model Number: SBSW-30

Place of Origin: Jiangsu, China (Mainland)
Condition: New
Type: Cabinet Air Conditioner
Operating Voltage: 380/400 VAC
Mounting: Floor Standing
Certification: CE
After-sales Service Provided: Engineers available to service machinery overseas
welder machine: welding
seamwelder: welding
welding machine: welding
stitchwelder: welding
spot welder: welding
seamwelder machine: ventilation
stitchwelder machine: ventilation
spot welder machine: ventilation
welding: ventilation
welder: ventilation

Packaging & Delivery

Packaging Details: wooden case
Delivery Detail: Shipped in 7 days after payment

Specifications

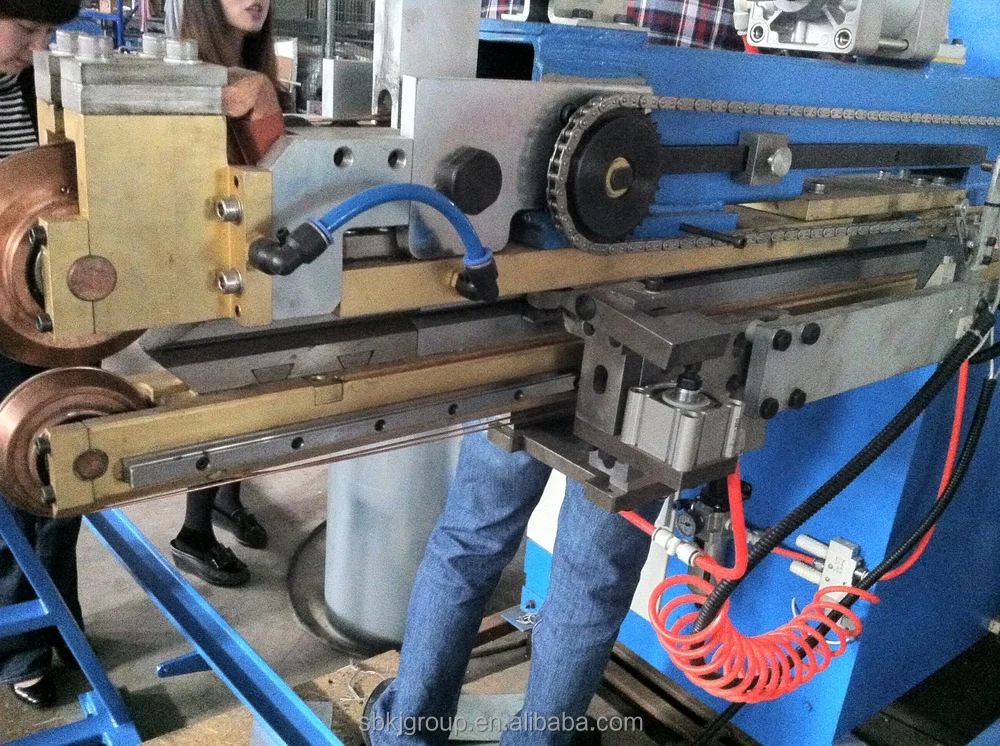

Seam welders are used for longitudinal welding of rolled sheet metal envelops like vessels and tanks. A particular application is continuous strip welding. Perfect mechanical positioning of the work pieces has to be ensured by an adapted clamping device allowing butt welding up to a wall thickness of 8 to 10 mm in conjunction with the Plasma keyhole process. TIG/GTAW cold/hot wire and MIG-MAG/GMAW are complementary welding processes. The seam welder is interfaced with our NC-weld control and becomes part of the integrated fully synchronised system.

Main Technical Date

Diameter range	100mm ~ 1000mm Smaller arm available
High range	50mm-1000mm longer arm available
Sheet thickness	0.4mm-1.2mm
Welding speed	4-12m/min
Seam overlap	6mm
Machine power	55 KVA
Power supply	3PH/380V/50HZ
Fuse	3*120A
Compress atmosphere	0.6Mpa
Diameter of wire	1.8mm
Net weight	1100kg
Gross weight	1150kg
Package dimension	1800×1300×2500mm
Machine dimension	1850×1350×2600mm

SBKJ INC.is based in the Yangtze River Delta, nearby Shanghai,China. Our company is a national new high-tech enterprise which is specialized in the development and manufacture of machines,such as tube forming machines, plasma cutting machines, for the production of round ducting and fittings in sheet metal, mainly for the climate and ventilation industry. We have gotten the certificates of ISO9001:2008 and ce. Our customers from more than 60 countries in the world.
SBKJ's research and development is the cornerstone for our automatic tubeformers that produce a higher quality duct with reduced production costs. Several patented inventions, such as the Flying Slitter and Flying Crimper have established SBKJ as the foremost and leading innovator in spiral duct manufacturing.
Our highly trained technicians will install and set up each SBKJ machine and train your personnel on all facets of the machine's operation and maintenance.
We sincerely welcome both domestic and international friends to cooperate with us.

Basic Information

Business Type: Manufacturer
Main Products: spiral tubeformer;duct forming machine;elbow making machine; welding machine;ovalizer;aluminum duct forming machine;plasma sutter;flange forming machine;seam closing machine;automatic line;rectangular smart line;lockformer;folding machine;shearing machine;grooving machine;corner binding machine;run-out table;duct zipper;forming head;power slitting and beeling machine etc.
Location: Jiangsu, China (Mainland) Asia
Year Established:

Trade Capacity

Accepted Delivery Terms: FOB,CFR,CIF,EXW,DDP,DDU
Accepted Payment Currency: USD,RMB
Accepted Payment Type: L/C,T/T,Western Union,Cash
Nearest Port: shanghai port,lianyungang port,ningbo port
