Condition: New
Usage: vegetable, fruit, juice, milk, fish, plastic bottle, sauce, meat, egg
Type: Autoclave
Voltage: 380V/220V
Power(W): 17.5Kw
Weight: 2920kgs
Dimension(L*W*H): 4500mm*1300mm*3140mm
Certification: ISO, CE, ASME
Warranty: 1 year
After-sales Service Provided: Engineers available to service machinery overseas
Raw Material: Stainless Steel 304
Control Mode: full automatic/semi-auto
Working temperature: 121 degree centigrade
Design temperature: 145 degree centigrade
Design pressure: 0.35Mpa
Inner Diameter: 1200mm
Capacity: 3740L
Chamber Length: 3000mm
Insulation Layer: Rock Wool
Woking Quality: Safe and reliable
Specifications:
sterilizing retort
1. energy efficiency
2. suitable for large food packages
3. direct heating, direct cooling
4.PLC full automatic control
Automatic Water Immersion Sterilizing Retort for Vegetable
Features:
1. Uniform heat distribution and no blind angle for sterilization;
2. Preheat the process water in the upper storage vessel in advance, shorten the sterilization time and improve the working efficiency;
3. Process water can be used repeatedly, saving energy, time, manpower, and reducing the production cost;
4. Short process time and high temperature preserve food flavor and nutrition;
5. Perfect pressure control system, efficiently avoiding the containers deformation and package break;
6. Continally monitor the temperature inside the retort, keeping the temperature difference ±0.5℃;
7. Siemens PLC automatic control system and touch screen, easy to operate;
8. System will make alarm calls automatically when the temperature, the pressure, the water level, or any other kinds of error occur.
Applicable Scope:
1. Canned Containers: tin can, aluminum can
2. Plastic Container: PP bottle, HDPE bottle
3. Soft package: Aluminum foil bag, transparent bag, vacuum bag, retort pouches, doy-packs, ect.
Description and Working Principle:

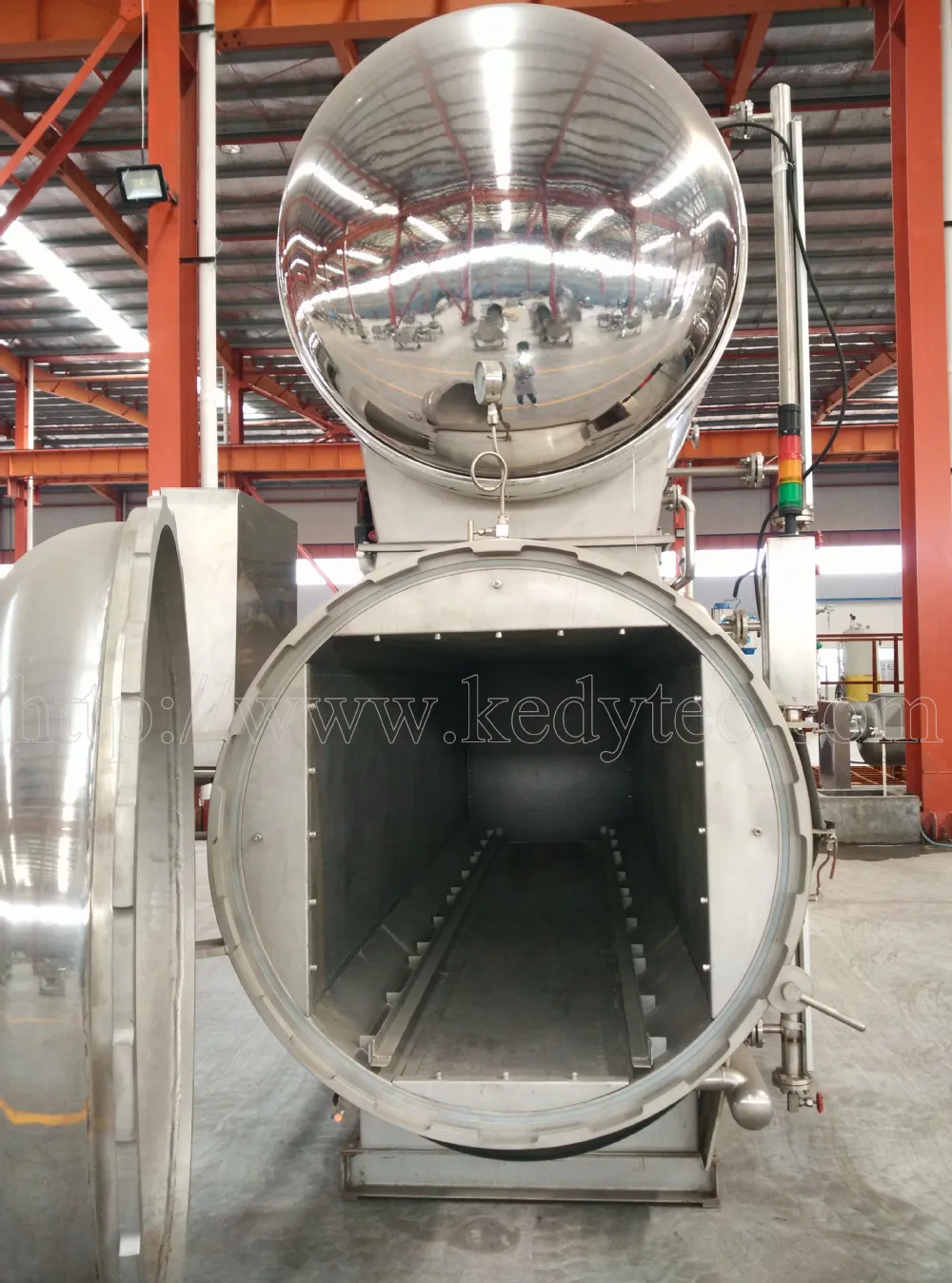

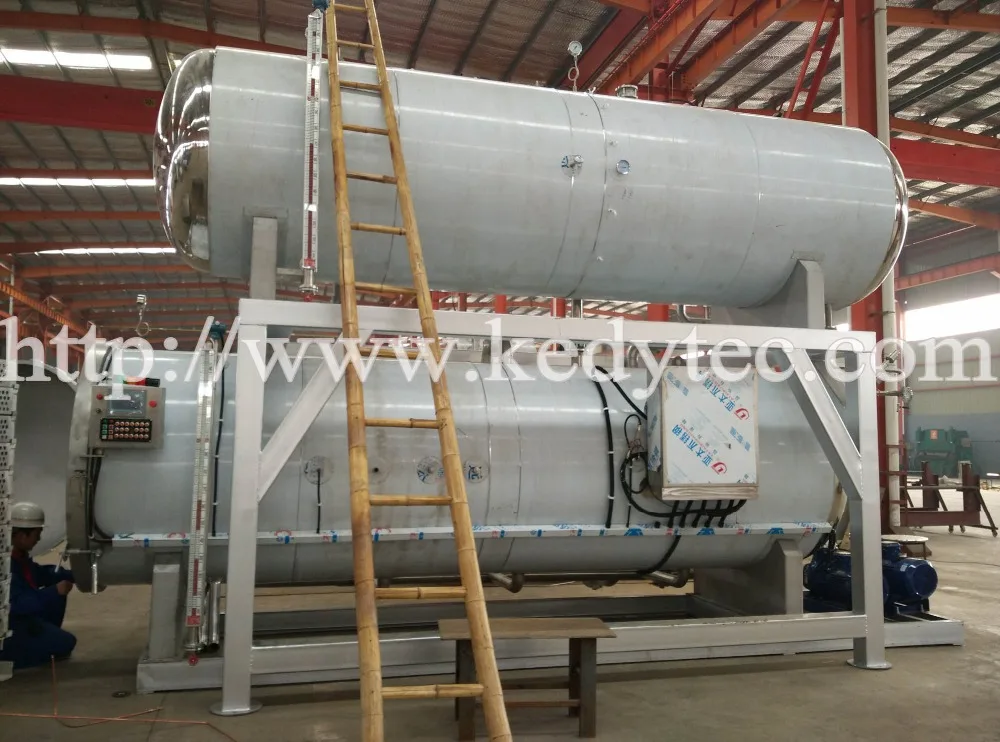

The Water Immersion Retort is usually composed of upper vessel and lower vessel. The top one is used to store preheated process water and recycle the hot process water before cooling process. The bottom one is the retort for sterilization.
After the food containers were loaded into the baskets and enter the retort, the preheated process water is delivered into the retort through water spreader on the top of retort, the water level was controlled and monitored by water level gauge outside the retort.
The steam enter the retort through the water spreader or additional steam spreader and heat the process water continually until the temperature rise to scheduled sterilization temperature.
The circulation pump recycle the hot water with a high speed and assure the uniform heat distribution inside the retort.
After the sterilization is completed, the hot water will be recycled to the top tank and stored for next batch sterilization. Then the cooling water will be filled into the retort directly to make the food container cool down.
Technical Parameters:
Model No. |
Outside Dimension(mm) |
Inner Diameter |
Vessel Length |
Capacity |
Body Thickness |
Max Working Pressure |
Max Working Temperature(ºC) |
Weight (Kg) |
Installed Power |
Voltage |
||
Length |
Width |
Height |
||||||||||
CT.10-1.B.3 |
2300 |
1200 |
2730 |
1000 |
1000 |
1050 |
4 |
0.3 |
145 |
1120 |
6 |
380 |
CT.10-2.B.3 |
3400 |
1200 |
2730 |
1000 |
2000 |
1800 |
4 |
0.3 |
145 |
1920 |
9 |
380 |
CT.12-2.B.3 |
3520 |
1300 |
2960 |
1200 |
2000 |
2650 |
5 |
0.3 |
145 |
2320 |
14 |
380 |
CT.12-3.B.3 |
4500 |
1300 |
3140 |
1200 |
3000 |
3740 |
5 |
0.3 |
145 |
2920 |
17.5 |
380 |
CT.12-4.B.3 |
5620 |
1300 |
3340 |
1200 |
4000 |
4800 |
5 |
0.3 |
145 |
3120 |
19.5 |
380 |
CT.13-4.B.3 |
5820 |
1600 |
3645 |
1300 |
4000 |
5620 |
5 |
0.3 |
145 |
3320 |
23 |
380 |
Those retort sterilizers in the chart are standard configurations.
We also can customize the retort machine according to your specific requirements or your drawing.

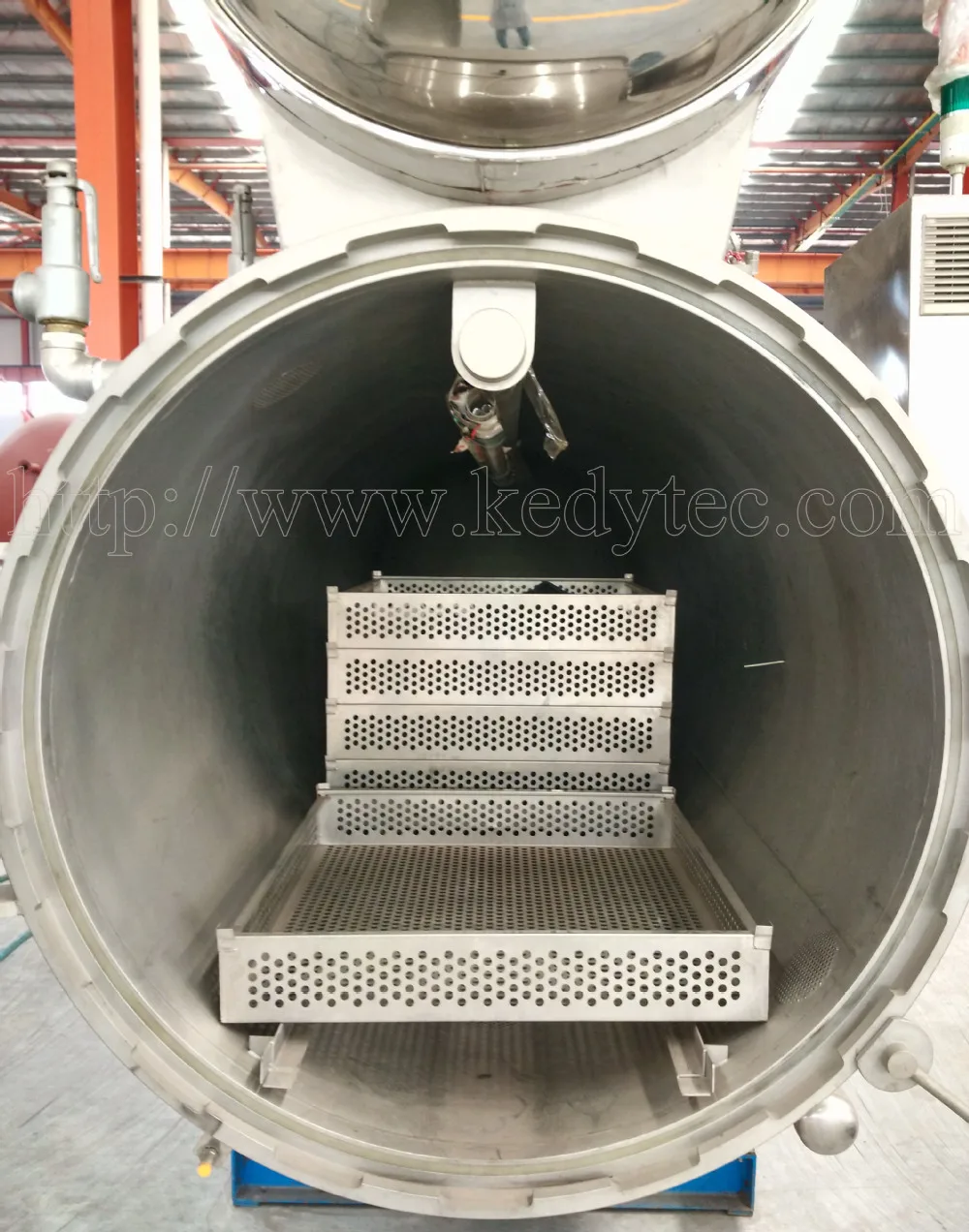

Trays, trolleys and baskets:
Our Workshop:
Delivery:
We will deliver your goods by LCL/20'FCL/40'FCL depending on your order.
Before delivery, our professional technician will do trial run for each product to check until everything is functional, you also can come to our factory and test our machine together with us.
When loading, our workers will fix the retorts tightly with wire rope so that the retorts can't move in the container.
