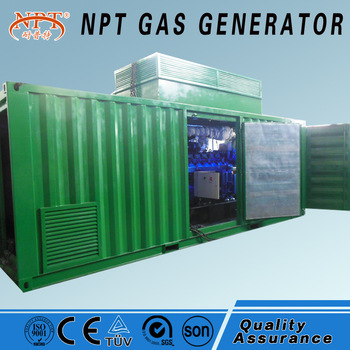

ISO approved silent 400KW biogas generator with best price

ISO approved silent 400KW biogas generator with best price

Price:

US 90000-92000 / Set

Min.Order Quantity:

1 Set/Sets

Supply Ability:

100 Set/Sets per Month

Port:

Qingdao

Place of Origin:

Shandong, China (Mainland)

Payment Terms:

L/C,T/T,Western Union

Brand:

NPT

Products Model:

400GFT

Products Details
Company Profile

Quick Details

Brand Name: NPT

Model Number: 400GFT

Place of Origin: Shandong, China (Mainland)
Output Type: AC Three Phase
Speed: 1800rpm
Frequency: 60Hz
Rated Power: 400kW
Rated Voltage: 440V/230V
Rated Current: 720A
Product name: ISO approved silent 400KW biogas generator with best price
Dimension(L*W*H): 3050*2180*2080mm
Gross Weight (kg): 4800kg
Fuel type: Biogas
Rated output: 440V/230V
Alternator: MBH( Germany)
Voltage Regulation: AVR
Engine model: ND238D43TL
Certificate: ISO | CE
Warranty: 1 Year

Packaging & Delivery

Packaging Details: 1 Piece /plywood cases or simple packing
Delivery Detail: 25 days after 30% deposit received

Specifications

Product Description

Product Application

A biogas generator is a reactor or chemical processing system designed to organically break down biological source materials into gasses such as methane and hydrogen that can then be combined with oxygen for use as a source of fuel. Many types of waste matter can be used to generate biogas, including municipal waste and manure, plant waste from crop fields, residential lawns, parks, and more.

Product name	ISO approved silent 400KW biogas generator with best price
Model	400GFT
Rated power	400kW/500kVA
Basics electric parameter	60Hz,3 p 4 w,440V/230V
Rated speed	1800rpm
Power factor	Lag0.8
Insulation Class	H
Protection Class	IP23
Gross Weight	4800kg
Dimension(LWH)	305021802080mm

Main Features of ISO approved silent 400KW biogas generator with best price

1) Original engine base on AVL develop or Deutz type.

2) Adopted four valves each cylinder and many other new technology of ICE.

3) Based on NPT more than 20 years experience and database of developing gas engine.

4) Woodword advanced control system application.

5) Easy operation,press one key for all.

Details

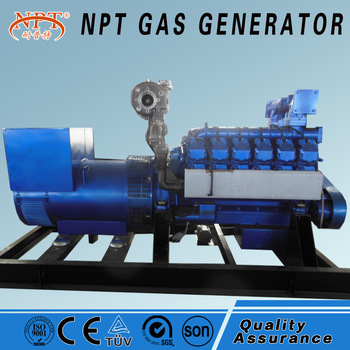

Gas Engine
Model	ND238D43TL
Type	V type 4 stroke, electric control ignition, pre-mixed lean burn, turbocharged after cooled
Rated power	430kW
Rated Speed	1800rpm
Speed regulation	Electronic governor
Cylinder Qty	V12
Bore*Stroke	132*145mm
Displacement	23.8L
Fuel gas intake pressure	2kPa--50kPa
Fuel gas type	Biogas

Genset Controller introduction
Main Protection Function
Fail to start	Over speed
Low engine oil pressure	High engine temperature
Generator low frequency	Generator high frequency
Main Displayed Parameter
load current	Engine oil temperature
Frequency	Engine oil pressure

Alternator
Model	XN5D
Brand	MBH( Germany)
Rated Power	400kW/500kVA
Rated current	720A
Rated Frequency	60Hz
Rated output	440V/230V
Exciting Mode	Self-Excited,Brushless
Voltage Regulation	AVR
