aluminum shell air condition compressor capacitor CBB65

FOB Price:

US 0.1-2.99 / Piece

Min.Order Quantity:

1000 Piece/Pieces

Supply Ability:

600000 Piece/Pieces per Month

Port:

Ningbo

Place of Origin:

Zhejiang, China (Mainland)

Payment Terms:

L/C,T/T

Brand:

ACR

Products Model:

Air Conditioning Compressor Capacitor

Products Details
Company Profile

Quick Details

Brand Name: ACR

Model Number: Air Conditioning Compressor Capacitor

Place of Origin: Zhejiang, China (Mainland)
Type: Polypropylene Film Capacitor
Application: AC / Motor
Package Type: Surface Mount
Capacitance: 21-1536uF
Rated Voltage: 110-330VAC
Operating Temperature: -40 -65dgr
Capacitor Certification: VDE, CUL, UL, TUV, DIN, CQC

Packaging & Delivery

Packaging Details: Air Conditioning Compressor Capacitor 50pcs/carton or 100pcs /carton or depend on inquire
Delivery Detail: 5-10 days

Specifications

Air Conditioning Compressor Capacitor:
1,CE,TUV,UL & ROHS proved
2,keeps human and environment first
3,safe & long life.

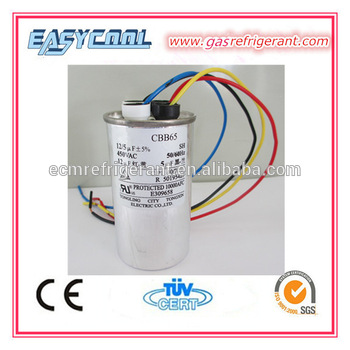

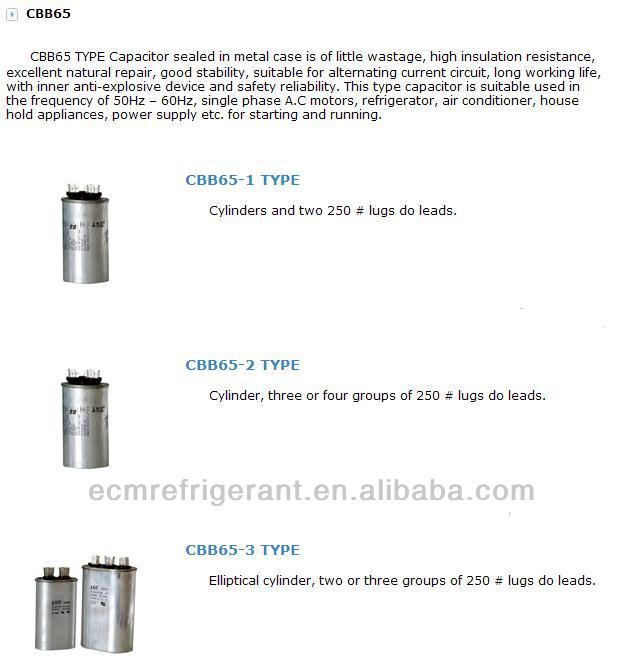

Aluminum shell air condition compressor capacitor CBB65

Air Conditioner Capacitor

1. Explosion proof. CLASS: P1, P2;
2. High insulation resistance, small warm up inside;
3. Low wastage, suit for alternating current;
4. Good capacitance stability and self-recovery;
5. Safety and high reliability due to the plastic and metal case, flame-retardant epoxy resin filled;
6. CBB65 metallic polypropylene film capacitors have the special characteristic of good impact endurance, strong over loading capacity, and inner-installed flameproof equipment which provide your with credible secure. They are applicable for starting and running in household electric appliances as washing machine, air conditioner which demand 50 to 60Hz AC power supply.

Specifications: Can be supplied according to the customers' special need. Main Technical parameter:

1. Operation Temperature: -40oC to 70oC, -40oC to 85oC
2. Raed Voltage: 110 to 630V. AC
3. Voltage Proof: T-T 2UR/10S T-C 2200V. AC/10S
4. Capacitance Tolerance: ± 5%, ± 10%
5. Insulation Resistance: T-T≥ 3000MΩ . UF T-C≥ 1000MΩ
6. Dissipation Factor: Tgδ ≤ 0.002 7. Capacitance Rang: 5 UF to 120 UF

Product type	Air Conditioner capacitor
Capacitance range	5uF~120uF
Capacitance deviation	± 5% or according to customers’ requests.
Rated Voltage	250VAC, 370VAC, 400VAC, 450VAC, 500VAC
Rated frequency	50/60Hz
Operating Temperature	-40° C~+85° C
Class of safety protection	P1, P2
Testing voltage	T-T: 2.0Un/60S
Insulation resistance	> =3000s
Tangent of loss angle of a capacitor	tanσ ≤ 0.002 (100Hz)
Life expectancy	3000h (Class C) or 10000h (Class B)
Size	according to chart or users require
