Brand Name: JinPin
Model Number: 58
Place of Origin: Shandong, China (Mainland)
Shaping Mode: Forging Mould
Product Material: Metal

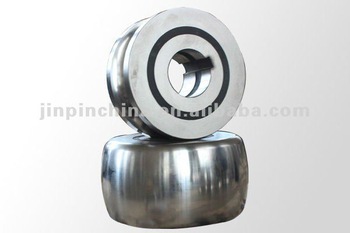

Product: pipe, high precision forming roll
Application: round steel pipe
Mould material: Cr12,Cr12Mo1V1,Cr12MoV
Coating: anti-rust oil
Condition: hot
Certificate: ISO certificate
Samples: available
After-sales service: engineer available to service rollers overseas
Mould manufacturer
Line simulation
1. Flower design
2. Flower verification
3. Roll design
4. Simulation analysis
5. Roll manufacturer
6. Trial manufacturer with test mill
7. Re-verification of result
Mould style |
Breakdown/forming rolls
Fin pass rolls
Welding rolls
Sizing rolls
Turk’s head rolls |
Mould material |
Cr12,Cr12Mo1V1,Cr12MoV SKD11 SKD61 D2 EN31 D3 H13 Any special material according to your requirement |
Produced Pipe Shape and size |
round steel pipe:Φ8(mm)-Φ711(mm)
square steel pipe: can be as large as 550*550(mm)
cold roll forming pipe: U-shape W-shape Z-shape steel sheet pile, color coil, section bar and so on
any special shape can be customer-made |
Strong hot sell point |
advanced groove design
strict analysis and inspection of raw materials
special heat treatment technology
precision machining
advanced quality control system |
Mould processing line
Part of steel pipe with our moulds
