Electric Heating Element with Temperature Control Test Kit

Electric Heating Element with Temperature Control Test Kit

FOB Price:

US 1-22 / Piece

Min.Order Quantity:

1 Piece/Pieces

Supply Ability:

300000 Piece/Pieces per Month

Port:

Tianjin/Qingdao/Shanghai

Place of Origin:

Henan, China (Mainland)

Payment Terms:

T/T,Western Union,Paypal

Brand:

Andetong

Products Model:

JD 2200w20120/220V Teating kit

Products Details
Company Profile

Quick Details

Brand Name: Andetong

Model Number: JD 2200w20120/220V Teating kit

Place of Origin: Henan, China (Mainland)
Type: Electric Water Heater Parts, heating element controller
Certificates: CQC, RoHS
Service Life: >10,000 hours
Power: 2.2KW
Dimention: 20mm(diameter)*120mm(length)
Feature: Water Flow inside tube, Electrict Circuit on tube surface
Other Name: electrical test kit
Technology: electric heating element with temperature control
Service: Engineers available to service machinery overseas
Heating Materials: Stainless Steel Tube (SUS430)

Packaging & Delivery

Packaging Details: Packaged by Carton Box
Delivery Detail: 7-15 days after payment

Specifications

Product Description

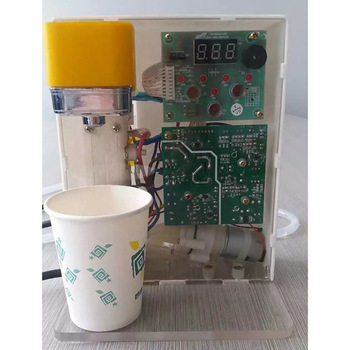

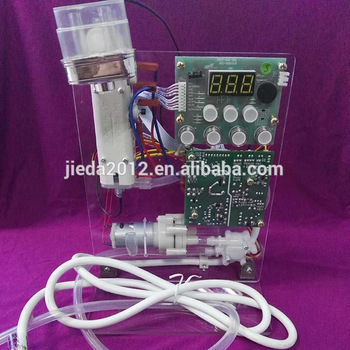

Electric Heating Element with Temperature Control Test Kit

Thick film heating element is advanced in power density(＞40W/cm²), heating area(tubular structure), and quick response(80℃/S).

With its simple tubular structure, it can heat water flow inside the tube. Electric Circuit printed on tube surface, to heating the water flow inside.

It can be applied for industrial water flow heating. For applications where space is limited, this simple profile heater offers high thermal power density and fast response times to heat up or cool down (due to low thermal mass).

Grounding Type	Spot-Weld	Heat Density	＞40W/cm²
Ramp-Up Rate	80℃/s	Thermal Efficiency	＞96%
Heating Power	2.2kw	Service Life	＞10,000 hours
Rated Voltage	220v	Certificate	CQC, RoHS
Dielectric Strength	1,500V/5mA/60s	Power Deviation	-10% - +5%
Leakage Current	≤0.25mA	Insulation Resistance	≥200MΩ
Thermistor Type	PTC	Dimension	Φ20mm*120mm(length)

Main Features

1. Electric Circuit printed on stainless steel tube surface, to heating the water flow inside. 5 isolation layers sintered on the surface.
2. Large heat transfer area on tube surface; Ramp up and Cool down quickly; High utilization rate up to 93% or above.
3. Fast temperature response, power density is as high as 60W/cm² and heating circuit’s temperature raising rate exceeds 80℃/s.
4. Simple structure, compact profile, various applications

Tube Structure

Glass Cover Layer: (Mechanical) Protection, Insulation
Main (Heater) Track: Heat Generation
Dielectric Layer: Insulation
Stainless Steel Tube: Carrier Material

Thick Film Stainless Steel Tube

1). Electric Circuit printed on tube surface, to heating the water flow inside.
2). Compact size, high heat utilization
3). Available Power 3.5KW
4). SUS430 Stainless Steel

Related Thick Film Quick Heating High Power Density Electric Heater Tubes
Model	Power	Rated Voltage	Customized Power Range	Diameter	Length	MOQ
XHD-Y-220G020120/220V	2.2KW	220V	≤2.5KW	20mm	120mm	500pcs
XHD-Y-220G030110/220V	2.2KW	220V	≤3KW	30mm	110mm	500pcs
XHD-Y-300G030110/220V	3KW	220V	≤3KW	30mm	110mm	500pcs
XHD-Y-350G035110/220V	3.5KW	220V	≤3.5KW	35mm	110mm	500pcs

Certifications

Customize Service

1. Substrate: SUS 430, 316
2. Tube diameter, Tube length, Power, Thermostat, Control Board, etc are available for customer design.

Packing & Delivery

Packaging
Size (m)	1.2 (L) * 1 (W) * 1.2 (D)
Weight	0.5 T
Packaging Details	The normal package is carton box, placed on wooden tray.

Xinxiang Jieda Precision Electronics Co., Ltd locates in Xinxiang Hi-Tech Development Park, which is 1 hour from Zhengzhou International Airport. Jieda was founded in 2010, is a high-tech manufacturer that specializes in design, research, produce and sales rare-earth metal thick film electric heating tubes/elements.

What is Jieda advanced in?
1.5 years experiences in Instant Thick Film Heating Elements. Available various solutions for water flow instant heating, especially for Home Appliances Instant Water Heaters, Water Flow Heating in medical equipment and Industrial Water Flow Heaters.
2.Professional in screen printing on tube surface in 10,000+ Grade Air Purification Workshop and Sintering process.
3.First manufacturer to mass produce Thick Film Heater Tube in China
4.Monthly production capacity up to 300,000 pieces

Due to the power density up to 60w/cm2, temperature ramp up rate above 80℃/S, thermal should be taken away quickly. So that we design Tubular Structure Thick Film Heating Element, to allow water flow inside it. Heat can be transferred from 360°direction into the water flow inside the tube.

Those electric thick film water heating tubes/elements are widely applied in Instant Water Boiling, Instant Hot Water Heater, Electric Hot Water Dispensers, Instant Coffee Makers, Instant Electric Heating Faucets, Dishwasher, Steam Generator, Floor Heating, Industrial Water Flow Heating, etc.
