Metal Body Centrifugal Fan

FOB Price:

US 1-5000 / Unit

Min.Order Quantity:

1 Unit/Units

Supply Ability:

2000 Unit/Units per Month

Port:

Huang pu,Guangzhou

Place of Origin:

Guangdong, China (Mainland)

Payment Terms:

L/C,D/A,T/T,Western Union,cash

Brand:

Xingke

Products Model:

XK-30S

Products Details
Company Profile

Quick Details

Brand Name: Xingke

Model Number: XK-30S

Place of Origin: Guangdong, China (Mainland)
Condition: New
Type: Evaporative Air Cooler
Operating Voltage: 380V
Mounting: Wall / Window Mount
Certification: CE
After-sales Service Provided: No overseas service provided

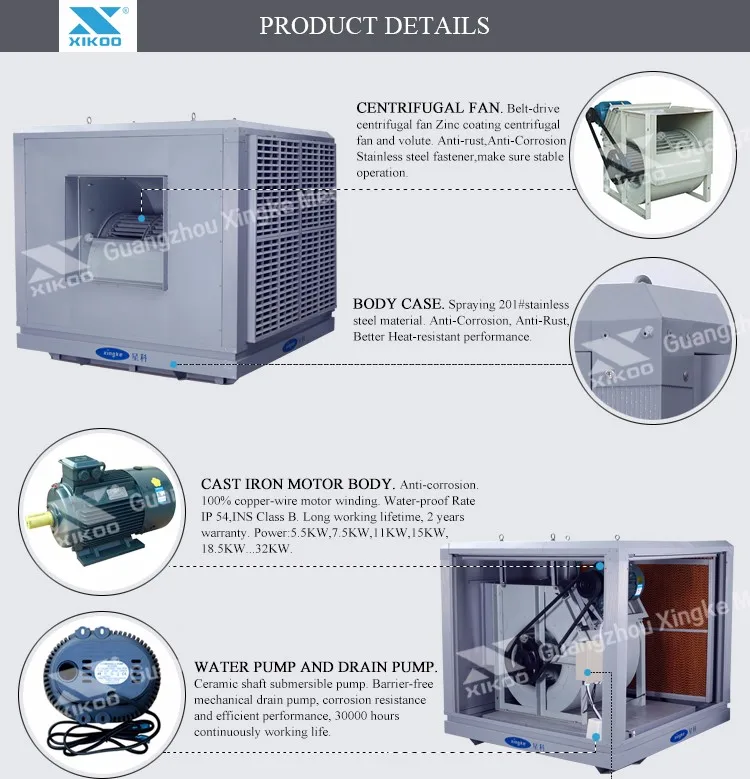

Body case: 201# spraying stainless steel
The core of motor: 100% copper wire winding
Cooling Pad: 100mm High Density 5090# Cooling Pad
Pump: Double Submersible pump
Fan type: Centrifuge fan
Ducting length: Can be 40-100m
work with belt: yes
Control panel: LCD display
Control system: Special PCB,dampproof
Other service: OEM

Packaging & Delivery

Packaging Details: P.E. film package,4 units per 20GP container.8 units for a 40HQ container.It depends.
Delivery Detail: 15-20 days on receipt of payment.

Specifications

Metal Body Centrifugal Fan

1. Adopt belt gearing centrifugal fan.

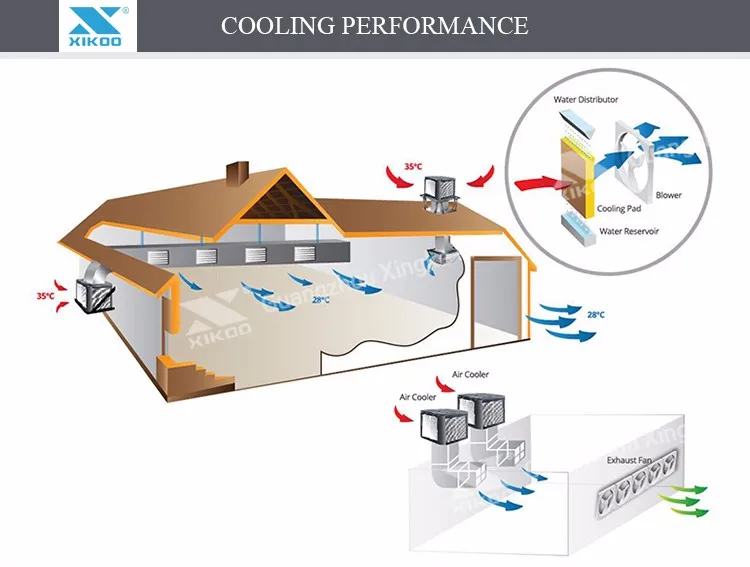

2. Suitable for large workshop, Applicable to cool a 150~300m2 plant in humid area and a 200~500m2 plant in dry area.

3. With large airflow and air pressure. The air delivery distance is more than 50m.

4. 201# or 304# Stainless steel shell, solid and durable.

5. High efficient evaporator, high evaporate rate, good cooling down effect.

PRODUCT PARAMETERS
Model	Airflow	Voltage/Hz	Power	Wind Pressure	N.W.	Noise	Air Delivery(pipeline)	Air Outlet
XK-30S	30000m³/h	380/50Hz	5.5Kw	406-505Pa	300Kgs	<100dB	30-55m	620*570mm
XK-35S	35000m³/h		7.5Kw	450-610Pa	350Kgs	<100dB	40-60m	780*702mm
XK-45S	45000m³/h		11Kw	515-703Pa	400Kgs	<100dB	50-70m	858*764mm
XK-50S	50000m³/h		15Kw	616-790Pa	450Kgs	<100dB	50-100m	*926834mm**

Applications&Cases
