Brand Name: CF
Model Number: HI-NBR
Place of Origin: Guangdong, China (Mainland)
Type: Other Heat Insulation Materials, Heat Insulation material
Material: Nitrile rubber foam
Color: Black
Structure: 100% Closed Cell
Thermal Conductivity: 0.032W/m.K
Fire Resistance: BS476-7 CLASS 1 / BS476-6 CLASS 0
Density: 50-70kg/m³
Water Vapour Permeability: 8.19X10-15 KG/Pa.s.m
Water Absorption By Volume: <0.1%
Application: HVAC & Building material insulation

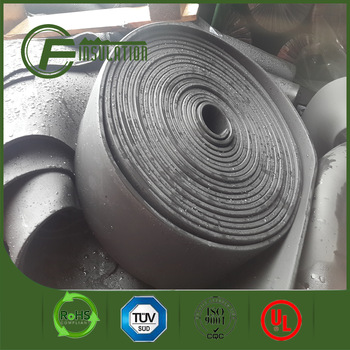

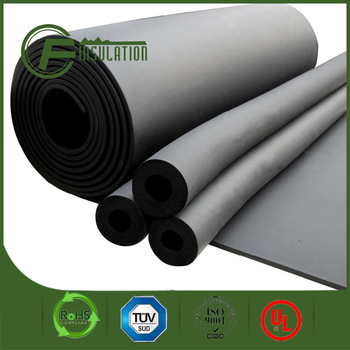

Fireproof Rubber Foam Blanket rolls waterproof thermal insulation
CF NBR is a uniquely formed closed cell flexible elastomeric insulation, used to insulate heating, ventilating, air-conditioning, refrigerating (HVAC/R). High quality CF NBR insulation tube and sheet provides thermal efficiency that reduces undesirable heat gain in chilled water systems, cold water plumbing, and refrigeration lines, air conditioning lines, cooling ductwork and equipments. When properly installed, this product also provides condensation and frost control on cold surface. CF NBR insulation material also efficiently reduces heat loss for hot water plumbing, liquid heating and dual temperature piping. CF NBR Self-Seal Tube / Sheet Insulation is also CFC/HCFC free, non-porous, fiber free, dust free and resistant to mold growth. The recommended temperature range for CF NBR insulation is -50℃ o +105℃ (-164℉ to +221℉).
Fireproof Thermal Insulation Foam | |||
Characteristics: | |||

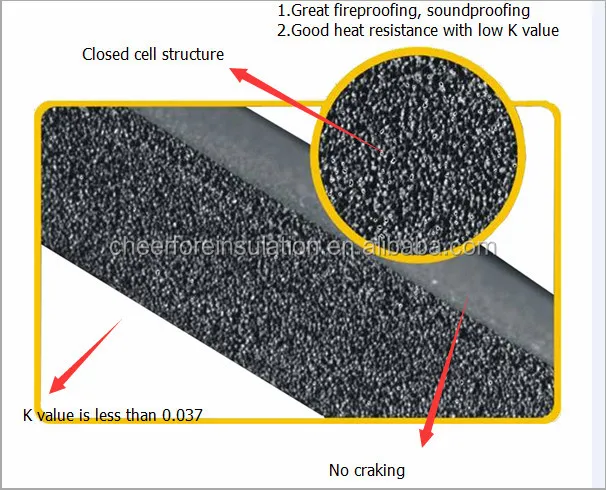

1. Closed-cell Structure. | |||
2. Low and Stable Thermal Conductivity. | |||
3. Low Water Absorption Rate. | |||
4. Good Fireproof and Soundproof Performance. | |||
5. Good Aging Resistance Performance. | |||
6. Simple and Easy Installation. | |||
7. Environmental friendly & Improved IAQ. | |||
Application: | |||

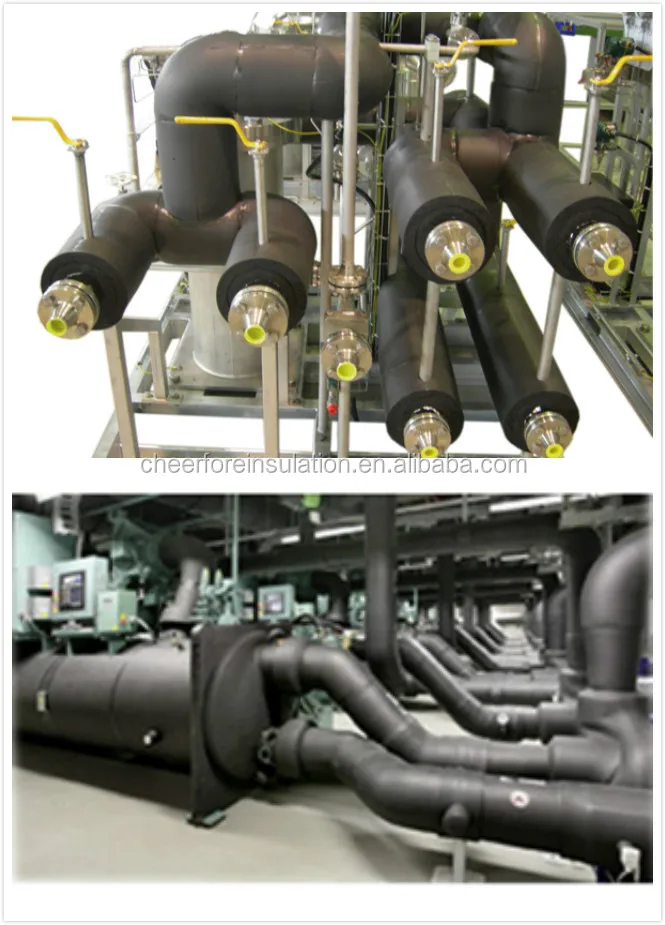

Be used to retard heat transmission and control condensation from chilled-water and refrigeration systems. It also efficiently reduces heat transfer for hot-water plumbing and liquid-heating and dual-temperature piping | |||
It is ideal for applications in: | |||
Ductwork | |||
Dual temperature and low pressure steam lines | |||
Process piping | |||
Air-conditioner, including hot gas piping | |||
Fireproof Thermal Insulation Foam PARAMETER: | |||
Physical Properties | Unit | Data | Test Methods |
Thermal Conductivity | W/m·K (BTU·in/hr·ft2·℉) | ||
-20℃ | 0.031 (0.225) | ASTM C518 | |
0℃ | 0.340 (0.240) | ||
40℃ | 0.380 (0.260) | ||
Water Vapor Permeability | s·m·Pa (perm-in) | 1.16 x 10-13 (0.08) | ASTM E96 |
Moisture Resistance | >= 7000 | ||
Water Absorption (%) | <= 0.2 (by volume) | ||
Flammability and smoke developed | 25/50 | ASTM E84 / ULC S102 | |
Class 1 / Class 0 | BS 476 Part 7 | ||
Density | Kg/m3 (lbs/ft3) | 50-90 (3.125-5.625) | ASTM D1667 |
Mold Resistance | Good | UL181 | |
Fungi Resistance | Good | ASTM G21 | |
UV & Weather Resistance | Good | ASTM G23 | |
Ozone Resistance | Good | ||
Dimensional Stability | 0 to 7% | ASTM C534 | |
Temperature Range | -50 – +105℃ (-164 – 221℉) |
We have many kinds of specifications for you to choose.
Please see the table below!

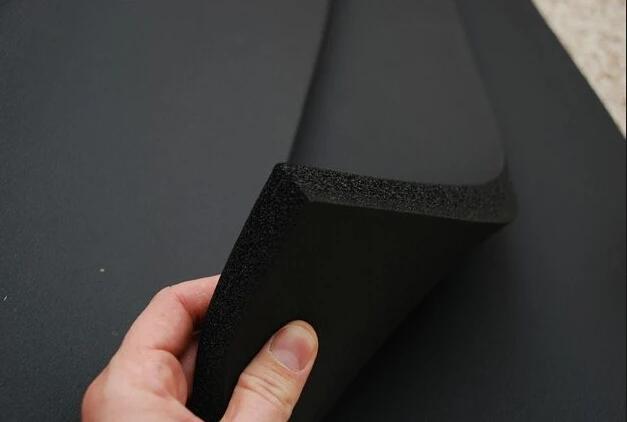

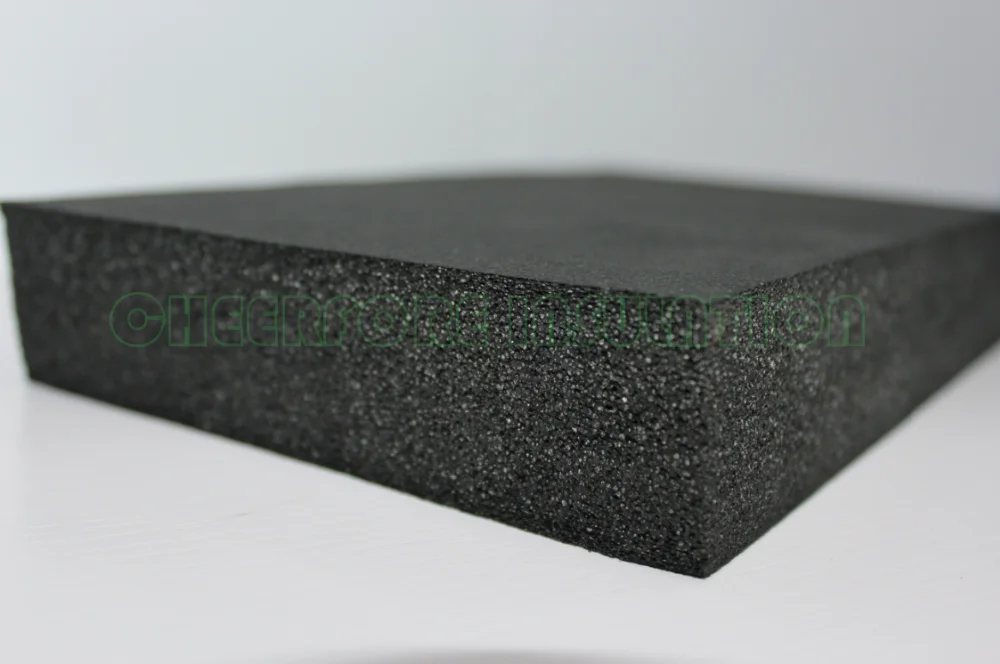

CF NBR Insulation Sheet Sizes (pieces per carton box or polybag)
Wall (Thickness) |
1/8” (3mm) |
1/4" (6mm) |
3/8" (9mm) |
1/2" (13mm) |
5/8”(16mm) |
3/4” (19mm) |
1” (25mm) |
1 1/4” (32mm) |
1 1/2” (38mm) |
2” (50mm) |
Width |
3feet or 1.0m |
|||||||||
Code No. |
S03 |
S06 |
S09 |
S13 |
S16 |
S19 |
S25 |
S32 |
S38 |
S50 |
Length |
4feet or 1.2m |
|||||||||
pcs/ctn(bag) |
80 |
40 |
26 |
20 |
16 |
14 |
10 |
8 |
7 |
5 |
CF NBR Insulation Roll Sizes
Wall (Thickness) |
1/8” (3mm) |
1/4" (6mm) |
3/8" (9mm) |
1/2" (13mm) |
5/8”(16mm) |
3/4” (19mm) |
1” (25mm) |
1 1/4” (32mm) |
1 1/2” (38mm) |
2” (50mm) |
Width |
0.5m, 3feet, 1.0m, 1.2m, 4feet or 1.5m |
|||||||||
Code No. |
R03 |
R06 |
R09 |
R13 |
R16 |
R19 |
R25 |
R32 |
R38 |
R50 |
Length/ctn(bag) |
30m |
30m |
20m |
10m |
10m |
10m |
8m |
6m |
4m |
4m |
