wood pellets biomass pellets fired cauldron for industrial usage

wood pellets biomass pellets fired cauldron for industrial usage

FOB Price:

Get Latest Price

Min.Order Quantity:

1 Set/Sets

Supply Ability:

500 Ton/Tons per Quarter

Port:

Shanghai, Qingdao, Tianjin, Guangzhou, Shenzhen, or other ports

Place of Origin:

Henan, China (Mainland)

Payment Terms:

L/C,D/P,T/T,Western Union

Brand:

Yuanda Boiler

Products Model:

SZL D

Products Details
Company Profile

Quick Details

Brand Name: Yuanda Boiler

Model Number: SZL D

Place of Origin: Henan, China (Mainland)
Condition: New
Type: Natural Circulation
Usage: Industrial
Structure: Water Tube
Pressure: Low Pressure
Style: Horizontal
Fuel: Pellets-fired
Output: Steam
Dimension(L*W*H): Depends
Weight: 5~50ton
Certification: ISO9001, BV, SGS
After-sales Service Provided: Engineers available to service machinery overseas
Steam capacity: 2ton/hr, 4ton/hr, 6ton/hr, 8ton/hr--2tph, 4tph, 6tph, 8tph
Working Pressure: 1.0Mpa, 1.25Mpa, 1.6Mpa, 2.5Mpa
Steam Temperature: 184C, 194C, 204C, 226C
Thermal efficiency: > 80%
Warranty: 18 Months
Operation: Automatic Control, fuel feeding, ashes out, water supply
Power frequency: 50/60HZ as choosen/ are available
Performance: Warming up fast, stable operation
Fuel consumption: 272kg/h-1090kg/h
Product name: wood pellets/biomass pellets fired cauldron for industrial usage

Packaging & Delivery

Packaging Details: Boiler proper, nude packing, 40' flact rack. Auxiliary machines, valves & gauges, water pumps, water softener, electrical cabinet, wooden box. Other auxliary machines, nude packing.
Delivery Detail: Shipped in 30 days after payment

Specifications

Products Overview

SZL(D) type industrial low pressure horizontal double-drum water tube cyclone combustion chamber water-cooled arch automatic chain grate package coal/ wood/ biomass fuels steam boilers

wood pellets/biomass pellets fired cauldron for industrial usage

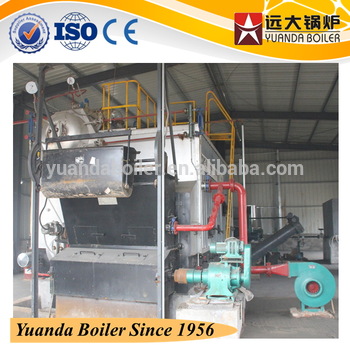

SZL(D) type steam boilers adopt the world latest modern technology, horizontal struture, double drums, layout water tubes between upper drum and lower drum to form larger furnace space, which are good for many kinds of solid fuels, equipped cyclone chamber and water-cooled arch inside to makes fuel burning sufficiently and higher boiler thermal efficiency, building fire-proof bricks between the water tubes layer to form third heating pass, increasing heating surface and boiler thermal efficiency.

wood pellets/biomass pellets fired cauldron for industrial usage
Rated steam capacity	2t/h, 4t/h, 6t/h, 8t/h, 2ton/h, 4ton/h, 6ton/h, 8ton/h 2TPH, 4TPH, 6TPH, 8TPH
Rated working pressure	10bar, 13bar, 16bar, 25bar 1.0Mpa, 1.25Mpa, 1.6Mpa, 2.5Mpa 150Psi, 180Psi, 230Psi, 360Psi
Rated steam temperature	184℃, 194℃, 204℃, 226℃
Design fuels	coal, coal powder, fine coal, lignite coal, brown coal, coal pellets, coal briquette, coal ball, bituminous coal, steam coal, coking coal, black coal charcoal, charcoal pellets wood pellets, wood briquettes biomass pellets, biomass briquettes straw pellets, crop pellets, wood chips, rice husk/hull walnut shells/hulls, peanut shells/hulls, coconut shell, cashew nut shells/hulls corncobs,bagasse rice stalk, cotton stalk, wheat stalk, crop stalk sawdust, wood dust, wood powder and other biomass fuels
Thermal efficiency	> 80%
Warranty	One year
Related machines	forced draft fan, induced draft fan, electrical cabinet, valves and meters, grate speeder governor, water pumps, fuels feeder, ashes extractor, water softener, steam header, economizer, dust remover, gas flue, chimney, etc.
Application	Provide steam and energy to machinery and plants in following industries, Food industry, Textile and garments industry, Shoes industry, Chemicals industry, Plastics industry, Rubber industry, Tyre industry, Metal and metallurgy industry, Energy & mineral industry, Medicines and pharmaceuticals industry, Beer, wine and beverage industry, Leather industry, Milk and dairy industry, Furnace industry, Laundry wash industry, Sterilization machines, etc.

Inner Structure

1.The cyclone combustion chamber makes fuel burning sufficiently;
2.Two drums form larger furnace space, which is good for fuel combustion, increase boiler heating efficiency;
3.Flame and flue gas three return enlarge boiler heating surface, increase the heating efficiency;
4.Self support, cancel the steel frame, simplify the structure;
5.Large size down pipe & bottom header, increase the water flow speed of water tubes, prevent to be explosion, improve the reliability of water circulation;
6.Large size furnace, make more convenient and efficient.

Auxiliary Machines

Forced draft fan / Induced draft fan
Blow clean air into boiler and promote exhauted gas out, ensure the air circulation of the whole system.

Electrical cabinet

Be responsible for electrical control of auxiliary machines, ensure the whole system working automatically and make the operation convenient.

Grate speed governor

Regulate the suitable speed of chian grate according to the combustion situation.

Feedwater Pump

Put water into boiler working system.

Automatic water softener

Remove Mg+ Ca+ in the water and improve water quality. This is good for boiler proper and tubes, prolong the service time.

Slag remover

Extract slags mechanically and save labour cost.

Economizer

Heat inlet water and reduce exhausted gas temperature, which increase boiler efficiency and is good for environment.

Steam Header

Distribute steam to different pipes

Fuel Conveyor

To raise and put fuels into fuel hopper.

Dust remover

Remove the dust and ash in exhausted gas to protect envrionment and reduce polutions.

Gas flue and Chimney

Provide channels for exhausted gas flow..

Henan Yuanda Boiler Co., Ltd. was established in 1956, as one of the leading enterprises which first obtained the national boiler manufacturing license in China.
We are the member of China Industrial Boiler Association and China Welding Association. We have passed ISO9001:2000 international quality system certification.

Our company always keeps long-term and close relationships with nationally noted universities and science research units. We have the support from international level experts and experienced and specialized persons in boiler industry. Fifty years' experience in professional development, manufacture, installation and operation makes our annual production capacity of industrial boilers up to 5000 t/h and one of our various pressure vessels up to 6000 t/h.

Our main products include Our main products include more than 150 kinds, hot water boiler and steam boiler, namely,
1. DZL or DZH new type water fire tube coal boilers, wood boiler(1-35T/H, 0.7-29MW)
2. WNS or SZS series gas boiler or oil boilers, condensing boiler (0.3-20T/H, 0.35-14MW)
3. SZL series water tube biomass boilers, pellet boiler (2-35T/H, 1.4-29MW)
4. LNB series coal gas boilers (0.3-10T)
5. LHS series vertical gas and oil fired boiler(0.3-1T)
6. AAC brick/block making machine
7. YLW, YY(Q)L coal fired thermal oil boiler, oil or gas fired hot oil boiler
8. ZWNS series oil fired or gas fired vacuu, boiler
9. All boiler accessories. like economizer, air preheater, deaerator, condensate water recycling equipment and so on
We sell well in more than 30 provinces and regions in China and in south-east Asia, Asia, Africa, South America, Middle East, Russia, etc.

"Quality first, technical innovation" is our guideline. We attach importance to introducing new technology and developing new products. All kinds of preferential policies and comfortable environment for talents make our company and our talents grow together.

We have close relationship with UCLA, SCUT, Zhengzhou University and Beijing Zhiguang Boiler institute and have long-term cooperation with them. We also have our own CAD workstation, which provides strong guarantee for R&D and manufacture.

We persist in taking "Technical innovation, service society" as development goal, and "quality-oriented, good faith world" as enterprise idea, trying our best to produce heat-supply products. "Creating the maximum value for clients and providing all-round and round-the-clock service" are our lofty missions.

Yuanda Boiler looks forward to making a brilliant future with you!
