Full port DC5V CR01 DN20 Full Port On-Off electric 2-way motor valve

FOB Price:

US 16.50 / Piece

Min.Order Quantity:

1 Piece

Port:

Place of Origin:

3sec

Payment Terms:

Brand:

Position indicator | quick open

Products Model:

100,000 times

Products Details
Company Profile

Quick Details

Standard or Nonstandard Standard: Standard
Standard or Nonstandard: Ball
Structure Ball: Medium Pressure, 1.0Mpa/150psi/PN10
Structure: power current
Pressure Medium Pressure, 1.0Mpa/150psi/PN10: Brass / SS304
Pressure: Medium Temperature
Power power current: Water
Power: 1/2’ to 1 1/4’
Material Brass / SS304: Tianjin, China (Mainland)
Material: CWX-15N
Temperature of Media Medium Temperature: CWX
Temperature of Media: General
Media Water: 1/2’
Media: IP65
Port Size 1/2’ to 1 1/4’: 3-6V,12/24V
Port Size: 10bar
Place of Origin Tianjin, China (Mainland): 3sec
Model Number CWX-15N: 100,000 times
Brand Name CWX: Position indicator | quick open

Specifications

Full port DC5V CR01 DN20 Full Port On-Off electric 2-way motor valve

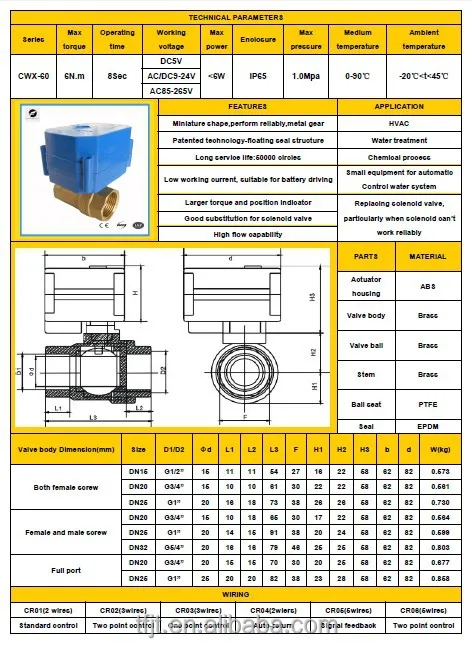

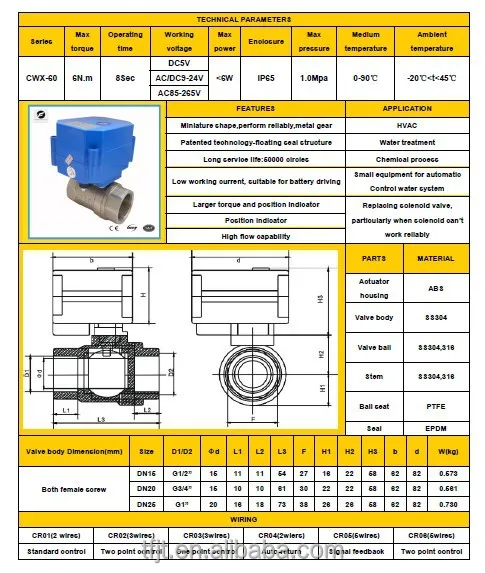

Technical paremeters:
Size: 1/4'' to 1 inches
Voltage: DC3V-9V 12V/24V 220V
Material: brass
Max working pressure:1.0MPa
Actuator rotation:90 degree
Torque output: 1.5Nm
Temperature: 0 - 90 degree celsius
Open/Close time: <3 seconds
Number of Wires: 2-5 wires
Protection Class : IP65
Features:
Mini dimension suits for samll equipment
Metal gear
Voltage : DC3-6V,12V/24V,220V
Open/close time: 3sec
Extra long life: 100000 times Min.
Low working current,less 100mA
Protection : IP65
Suitable to :
HVAC
Heating
Water treatment
Quick open/close condition
Water drinking equiments
The Circumstantce Pnematic valve can not worked

miniature motorized valve,actuated valve,automatic valve,motor operated valve,motor actuated valve,electric valve,motorised valve,2 way motorized valve,electric water valve,electric ball valve,motorized ball valve.

Tianjin Tianfei High-Tech Valve Co., Ltd. is a professional manufacturer, specialized in electric valve, motorized valve and electric actuator in China with more than 9 years' experience.

Especially, the high-quality products -- mini electric water valve "CWX-15Q" has long using life in more than 100,000 times with CE certification. The main markets are in America, Russia and the United Kingdom. Also we hope to find a way to cooperate with all new clients from the world.

TF's products can be used in diversified fluid control, including air, gas, water, etc. Electric actuators are suitable for installing ball valves and butterfly valves. Our electric valves and actuators can be applied to water treatment, HAVC, automatic control system, drinking water, air handling unit and fan coil and solar application, etc.

We would like to grow business with you. Contact us, let's talk more!
